SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice Cream Maker


06 - Water & Ice Dispenser

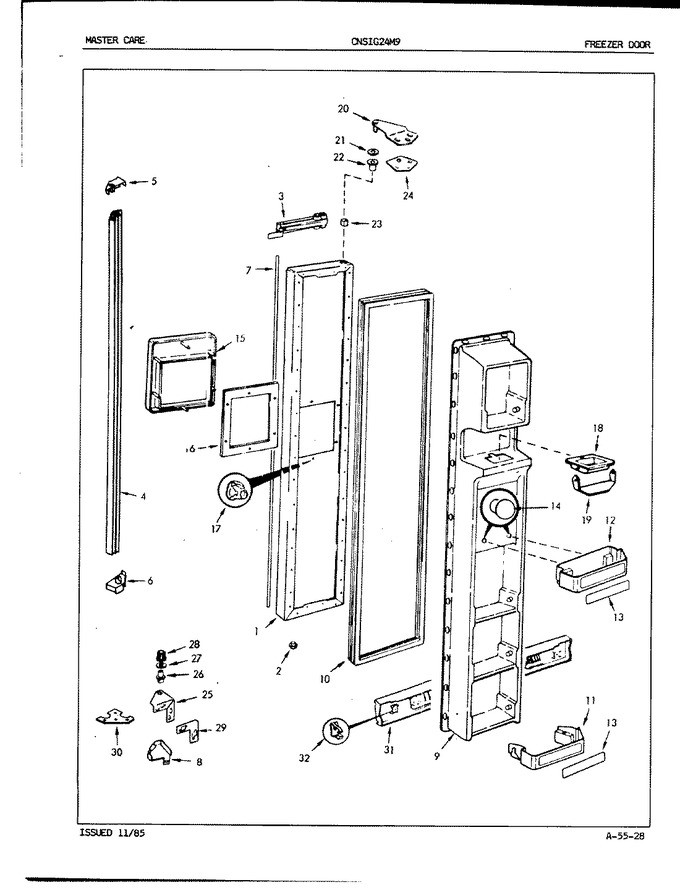

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	63069-6-AM		Panel, Outer Door		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	52613-1		Insulation, Closer		Appelez-nous	-
3	52614-1		Bracket, Closer		Appelez-nous	-
3	54485-1		Closer, Door		Appelez-nous	-
4	402100-1		Screw		Appelez-nous	-
4	56835-35		Handle		Appelez-nous	-
4	420063-1		Washer		Appelez-nous	-
5	57947-1		End Cap		Appelez-nous	-
6	402077-7		Screw		Appelez-nous	-
6	57947-2		End Cap		Appelez-nous	-
7	65772-18		Trim		Appelez-nous	-
8	65131-1		Wire Cover		Appelez-nous	-
9	65700-5		Liner, Door		Appelez-nous	-
9	9986-12		Screw,door Liner		Appelez-nous	-
10	53712-1		Gasket		Appelez-nous	-
11	65701-6		Shelf Front		Appelez-nous	-
12	65709-6		Shelf, Frz. Door		Appelez-nous	-
13	65571-21		Insert		Appelez-nous	-
14	420028-1		Washer		Appelez-nous	-
14	WP90767		Screw   (Replaces: 400014-1)			Immediately	$ 7.04
14	65660-1		Shelf Stud		Appelez-nous	-
15	60482-15		Escutcheon		Appelez-nous	-
16	63057-1		Seal, Escutcheon		Appelez-nous	-
17	65211-2		Retainer, Escutcheon		Appelez-nous	-
18	63020-2		Collar		Appelez-nous	-
19	63075-1		Door, Ice Chute		Appelez-nous	-
20	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
20	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
21	52185-2		Washer		Appelez-nous	-
22	66036-2		Bushing, Upper Hinge		Appelez-nous	-
23	55990-1		Seal Sleeve		Appelez-nous	-
24	65031-1		Shim, Upper Hinge		Appelez-nous	-
25	403062-5		Screw		Appelez-nous	-
25	60630-14		Hinge		Appelez-nous	-
26	55479-1		Pin		Appelez-nous	-
27	54233-2		Washer		Appelez-nous	-
28	66035-1		Bushing		Appelez-nous	-
29	60626-2		Shim		Appelez-nous	-
30	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
31	56478-19		Kickplate		Appelez-nous	-
32	52854-3		Clip, Kickplate		Appelez-nous	-
