New Model Search:

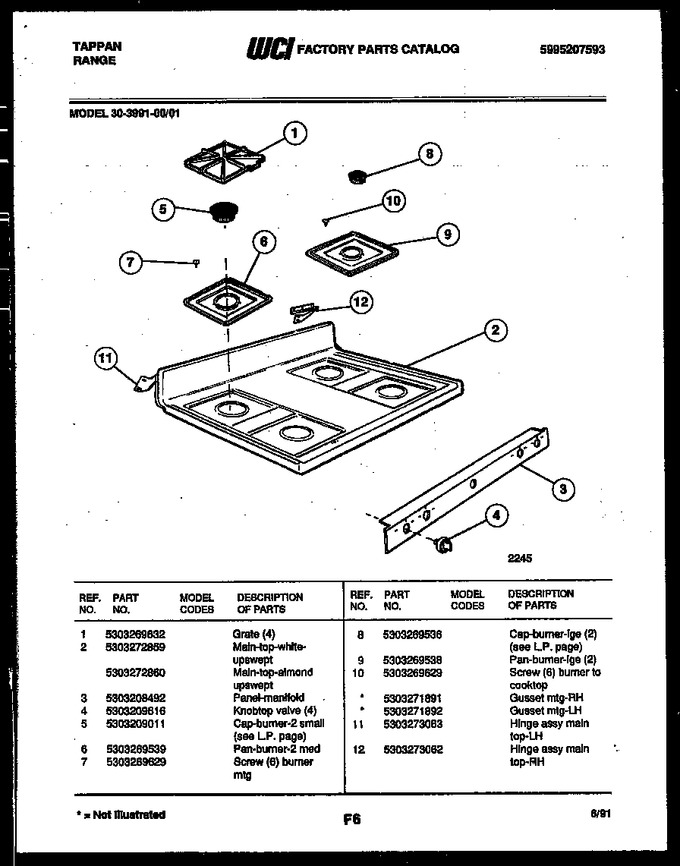

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318228310 | Grate (4) (Replaces: 5303269632) |
|
Immediately | $ 22.91 | ||||
| 2 | 5303272859 | Main-top-white-upswept |
|
- | |||||
| 3 | 5303208492 | Panel, Manifold |
|
- | |||||
| 4 | 5303209616 | Knob-top Valve, (4) |
|
- | |||||
| 5 | 5303209011 | Cap-burner-2 Small (see L.p. Page) |
|
- | |||||
| 6 | 5303269539 | Pan-burner-2 Med |
|
$ 71.51 | |||||
| 7 | 5303269629 | Screw (6) Burner Mtg |
|
- | |||||
| 8 | 5303269536 | Cap-burner-lge (2) (see L.p. Page) |
|
- | |||||
| 9 | 5303269538 | Pan-burner-lge (2) |
|
- | |||||
| 10 | 5303269629 | Screw (6) Burner To Cooktop |
|
- | |||||
| 11 | 5303273063 | Hinge Assy Main Top-lh |
|
$ 48.41 | |||||
| 12 | 5303273062 | Hinge Assy Main Top-rh |
|
- | |||||
| 10A | 5303271891 | Gusset-mtg (rh) (non-illustrated) |
|
- | |||||
| 10B | 5303271892 | Gusset-mtg (lh) (non-illustrated) |
|
- |
