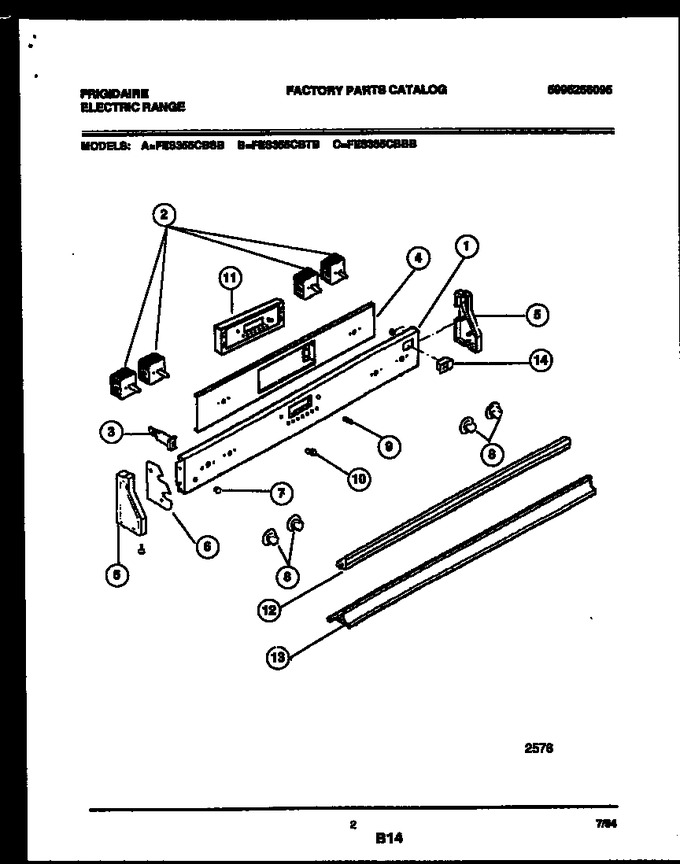

02 - Control Panel
03 - Cooktop And Broiler Parts
04 - Door Parts
05 - Body Parts
06 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303304664 | Panel-control |
|
- | |||||
| 2 | 5303300157 | Switch-s/u Sm |
|
- | |||||
| 3 | 5303051533 | Indicator Light S/u |
|
$ 53.81 | |||||
| 4 | 5303304667 | Bracket-timer |
|
- | |||||
| 5 | 5303304668 | Cap-end Rh |
|
- | |||||
| 6 | 5303284324 | Plate-end Cap (2) |
|
- | |||||
| 7 | 5308006417 | Lens-light |
|
$ 19.06 | |||||
| 8 | 5303304673 | Knob Assy (4) |
|
- | |||||
| 9 | 5303302401 | Timer-knob |
|
- | |||||
| 10 | 5303304675 | Button-timer (8) |
|
- | |||||
| 11 | 316005500 | Timer-e.o.c. |
|
- | |||||
| 12 | 5303304688 | Rail-top |
|
- | |||||
| 13 | 5303304690 | Rail-bottom |
|
- | |||||
| 14 | 316005601 | Switch-oven Light |
|
- | |||||
| *10547 | 5303304692 | Plate-light Switch |
|
- | |||||
| 11A | 316005700 | Spacer-e.o.c. |
|
- | |||||
| 2A | 5303300158 | Switch-s/u Lg |
|
- | |||||
| 5A | 5303304671 | Cap-end Lh |
|
- |
