SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System

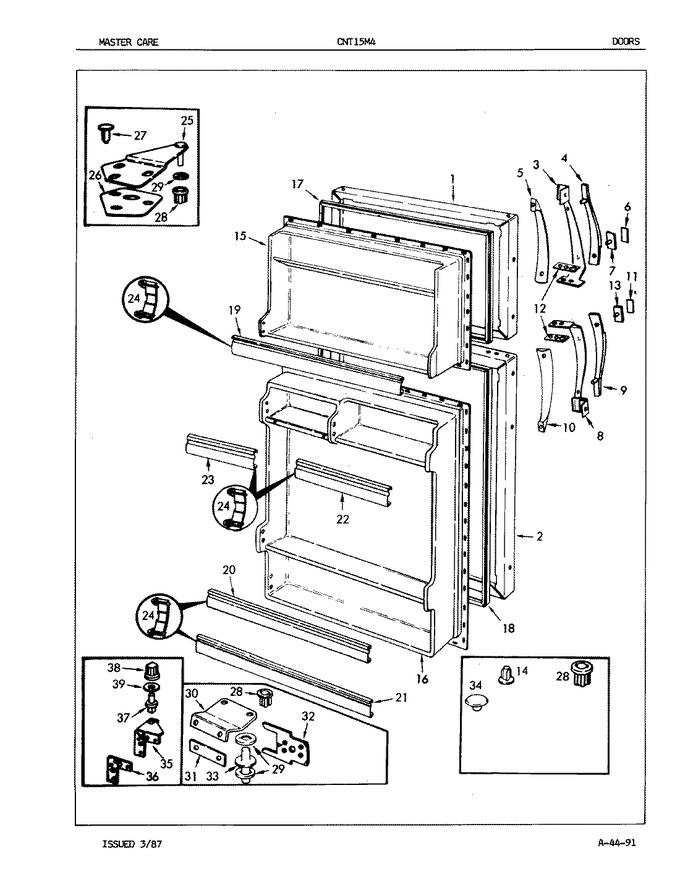

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60033-1-AM		Outer Panel		Appelez-nous	-
2	60032-63-AM		Outer Panel		Appelez-nous	-
3	60361-3		Handle		Appelez-nous	-
6	65340-5		Insert		Appelez-nous	-
8	56209-3		Clip, Stop Screw		Appelez-nous	-
8	60361-4		Handle		Appelez-nous	-
8	9986-122		Screw		Appelez-nous	-
8	60123-2		Clip, Stop Screw		Appelez-nous	-
11	65340-1		Insert		Appelez-nous	-
11	9986-112		Screw		Appelez-nous	-
14	55782-6		Plug Button (almond)		Appelez-nous	-
15	60044-9		Inner Panel		Appelez-nous	-
16	9986-12		Screw,door Liner		Appelez-nous	-
16	60051-9		Inner Panel		Appelez-nous	-
17	60462-1		Gasket, Door		Appelez-nous	-
18	60462-2		Gasket, Door		Appelez-nous	-
19	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
20	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
21	WP61003045		Trim, Door Shelf   (Replaces: 65151-113)				$ 129.55
22	WP61003045		Trim, Door Shelf   (Replaces: 65151-24)				$ 129.55
23	65151-193		Trim, Door Shelf		Appelez-nous	-
24	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
25	53709-18		Door Hinge, Upper		Appelez-nous	-
26	65031-1		Shim, Upper Hinge		Appelez-nous	-
27	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
28	55781-1		Bushing		Appelez-nous	-
29	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
29	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
30	60031-2		Door Hinge, Center		Appelez-nous	-
31	60034-1		Spacer, Center Hinge		Appelez-nous	-
32	60622-1		Tapping Plate		Appelez-nous	-
32	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
33	60035-4		Pin, Center Hinge		Appelez-nous	-
34	56186-6		Plug Button, (almond)		Appelez-nous	-
35	60630-8		Door Hinge, Lower		Appelez-nous	-
36	60626-1		Shim, Lower Hinge		Appelez-nous	-
37	53672-1		Pin, Lower Hinge		Appelez-nous	-
38	66034-1		Cup   (Replaces: 55424-1)				$ 19.76
39	403062-5		Screw		Appelez-nous	-
39	54233-2		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
