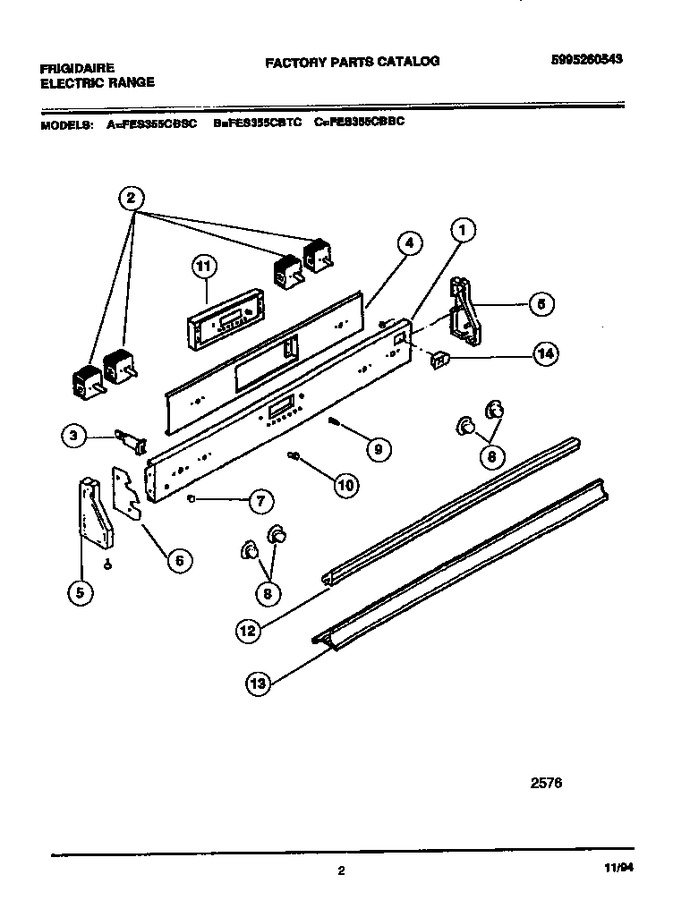

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303304665 | Panel-control |
|
- | |||||
| 2 | 5303300157 | Switch-s/u Sm |
|
- | |||||
| 3 | 5303051533 | Indicator Light S/u |
|
$ 53.81 | |||||
| 4 | 5303304667 | Bracket-timer |
|
- | |||||
| 5 | 5303307285 | Cap-end Rh-lh |
|
- | |||||
| 6 | 5303284324 | Plate-end Cap (2) |
|
- | |||||
| 7 | 5308006417 | Lens-light |
|
$ 19.06 | |||||
| 8 | 5303304674 | Knob Assy (4) |
|
- | |||||
| 9 | 5303302402 | Timer-knob |
|
- | |||||
| 10 | 5303304676 | Button-timer (8) |
|
- | |||||
| 11 | 316005500 | Timer-e.o.c. |
|
- | |||||
| 12 | 5303304689 | Rail-top |
|
- | |||||
| 13 | 5303304691 | Rail-bottom |
|
- | |||||
| 14 | 5303304693 | Switch-oven Light |
|
- | |||||
| 11A | 316005700 | Spacer-e.o.c. (non-illustrated) |
|
- | |||||
| 14A | 5303304692 | Plate-light Switch (non-illustrated) |
|
- | |||||
| 2A | 5303300158 | Switch-s/u Lg |
|
- |
