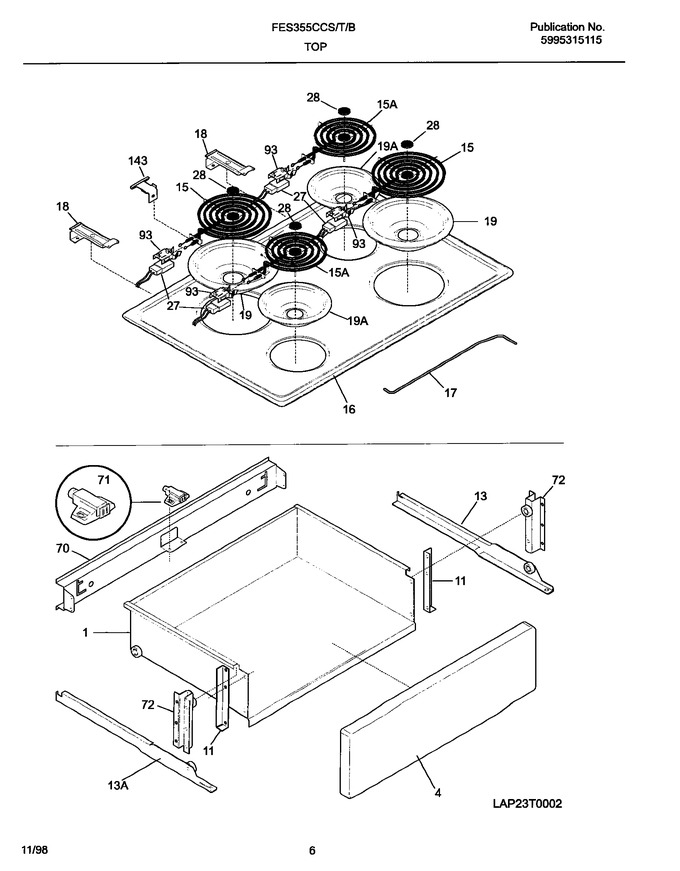

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
4	5303311178		Panel-drawer, Black		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
16	5303307287		Main Top, Black		Appelez-nous	-
17	3051554		Rod Main Top		Appelez-nous	-
18	5303305530		Bracket-hinge		Appelez-nous	-
19	316048413		Pan-surface Element,large/8 Inch   (Replaces: 318067010)			Immediately	$ 9.85
28	5303301461		Medallion, Surface Element		Appelez-nous	-
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
93	318122500		Support Terminal Block		Appelez-nous	-
143	5303300148		Bracket-hinge		Appelez-nous	-
13A	5303311130		Channel,drawer ,lh		Appelez-nous	-
19A	316048414		Pan-surface Element, Small / 6 Inch   (Replaces: 5303280336)			Immediately	$ 16.11
F15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303309001)			Immediately	$ 44.39
F15A	PS12-4BK		Element-surface, 1500w   (Replaces: 5303309000)			Immediately	$ 35.96
F27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5303288566		Screw-6-20 X 1/4   (Replaces: 5303320848)				$ 2.12
