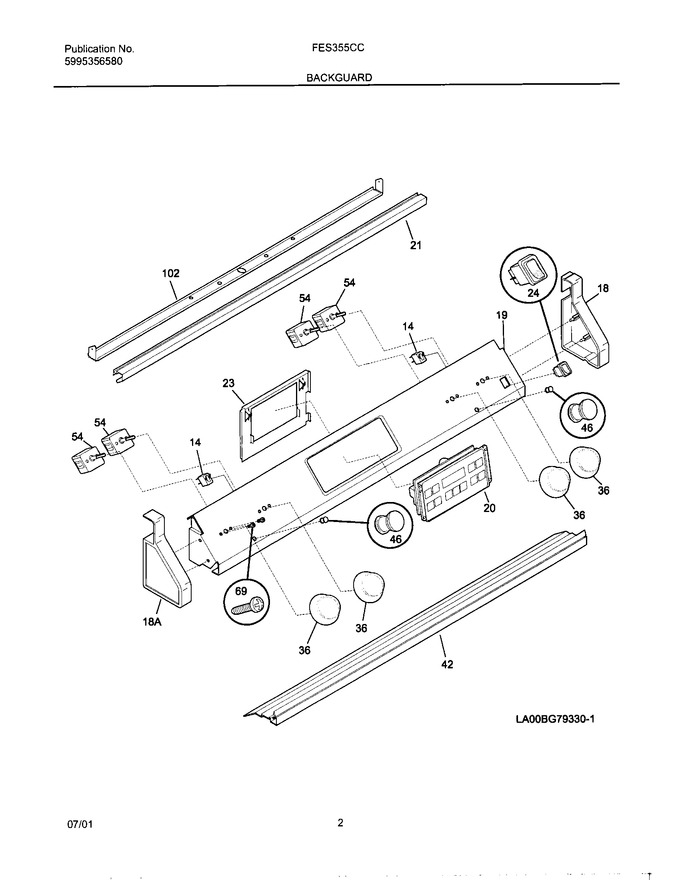

03 - Backguard


05 - Body


07 - Top


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light,indicator				$ 53.81
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
19	318182718		Panel,control ,black		Appelez-nous	-
21	318027803		Trim,backguard ,black ,top		Appelez-nous	-
23	318015020		Bracket-clock Mtg		Appelez-nous	-
36	5303299751		Knob,control ,black		Appelez-nous	-
42	318106927		Trim,backguard ,black ,bottom				$ 188.06
46	318044511		Lens-indicator Light   (Replaces: 318044510)			Immediately	$ 25.66
69	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
102	318055601		Bracket-mounting				$ 34.13
18A	5303300161		End Cap, Black, Lh		Appelez-nous	-
F20	318012917		Clock/timer, Eoc, Black		Appelez-nous	-
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
F54	318120501		Switch-surface Unit				$ 244.13
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303288566		Screw,6-20 X 0.250   (Replaces: 5303320848)				$ 2.12
