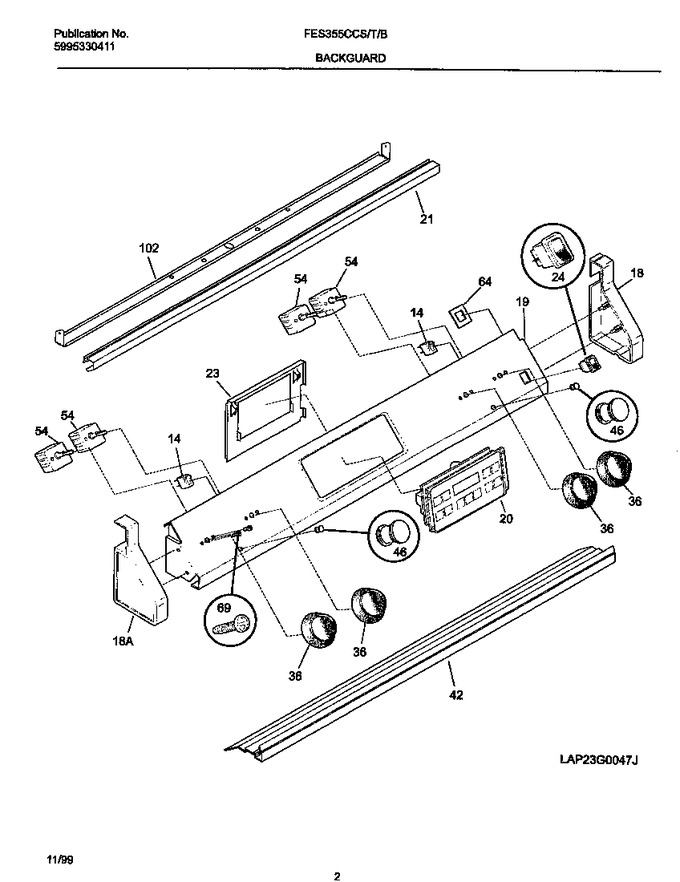

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
18	5303304668		End Cap, White, Rh		Appelez-nous	-
18	5303304671		End Cap, White, Lh		Appelez-nous	-
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
18	5303300161		End Cap, Black, Lh		Appelez-nous	-
19	318005502		Panel-control, White   (Replaces: 318005501)		Appelez-nous	-
19	318005500		Panel-control, Black		Appelez-nous	-
20	318012915		Clock/timer, Eoc, White		Appelez-nous	-
20	318012917		Clock/timer, Eoc, Black		Appelez-nous	-
21	318027803		Trim Backguard,top		Appelez-nous	-
21	318027804		Trim-backguard,top				$ 135.56
23	318015020		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
36	318164500		Knob,temp Control ,white				$ 91.30
36	5303299751		Knob-surface Unit, Black, (4)		Appelez-nous	-
42	318106924		Trim,backguard ,white ,bottom				$ 132.04
42	318106927		Trim,backguard ,black ,bottom				$ 188.06
46	5308006417		Lens-light/lamp, Indicator, Red, (2)				$ 19.06
54	318120501		Switch-surface Unit, (4)				$ 244.13
64	318112200		Mtg Rocker Switch		Appelez-nous	-
69	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
102	318055601		Bracket-mounting				$ 34.13
*19360	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*19361	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*19362	5303323145		Nut		Appelez-nous	-
*19363	08002868		Screw 10 X 24 X 1/2				$ 14.18
