01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System

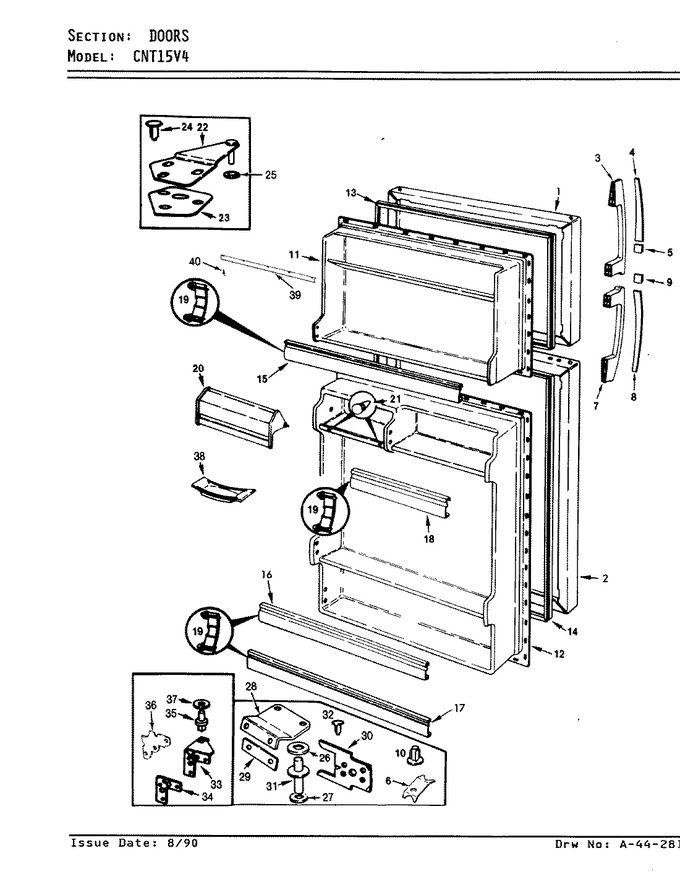

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68470-6-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	68469-7-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	59620-3		Door Handle		Appelez-nous	-
4	59256-12		Handle Trim		Appelez-nous	-
5	59917-4		Insert		Appelez-nous	-
6	56209-3		Clip, Stop Screw		Appelez-nous	-
7	66799-1		Achor, Screw		Appelez-nous	-
7	59620-3		Door Handle		Appelez-nous	-
7	402026-103		Screw		Appelez-nous	-
8	59256-12		Handle Trim		Appelez-nous	-
8	402047-103		Screw		Appelez-nous	-
9	59917-2		Insert		Appelez-nous	-
10	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
10	55782-6		Plug Button (almond)		Appelez-nous	-
11	65930-15		Liner, Door		Appelez-nous	-
12	9986-12		Screw,door Liner		Appelez-nous	-
12	65935-2		Liner, Door		Appelez-nous	-
13	66199-1		Gasket, Door		Appelez-nous	-
14	66199-2		Gasket, Door		Appelez-nous	-
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
16	WP61003045		Trim, Door Shelf   (Replaces: 65151-113)				$ 129.55
17	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
18	WP61003045		Trim, Door Shelf   (Replaces: 65151-24)				$ 129.55
19	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
20	60406-48		Door, Dairy		Appelez-nous	-
21	28272-6		Bumper, Door		Appelez-nous	-
22	53709-20		Hinge, Upper		Appelez-nous	-
23	65031-1		Shim, Upper Hinge		Appelez-nous	-
24	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
24	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
25	54233-2		Washer		Appelez-nous	-
26	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
27	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
27	54233-1		Washer				$ 7.71
28	68811-2		Hinge, Center		Appelez-nous	-
29	68812-1		Shim, Center Hinge		Appelez-nous	-
30	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
30	65275-24		Screw		Appelez-nous	-
31	67322-1		Pin, Center Hinge		Appelez-nous	-
32	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
32	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
33	67714-10		Hinge, Lower		Appelez-nous	-
33	403062-5		Screw		Appelez-nous	-
34	60626-1		Shim, Lower Hinge		Appelez-nous	-
35	68788-1		Hinge Pin		Appelez-nous	-
36	40310-1		Sub 805776		Appelez-nous	-
36	65790-3		Tapping Plate		Appelez-nous	-
37	67483-4		Washer		Appelez-nous	-
38	29936-2		Tray, Butter		Appelez-nous	-
39	68544-1		Seal, Secondary		Appelez-nous	-
40	52447-4		Clip		Appelez-nous	-
