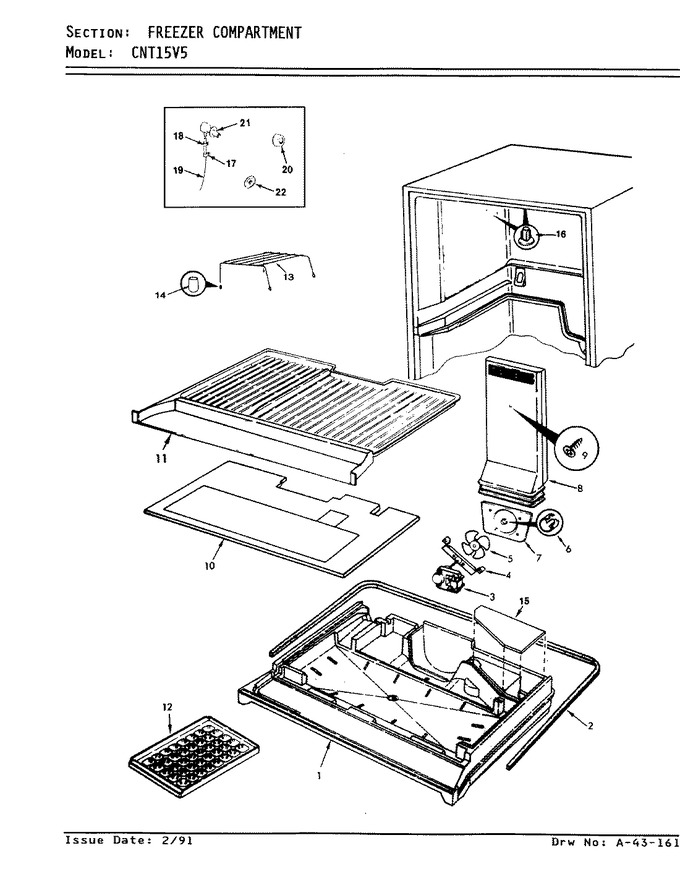

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67518-2		Mullion Divider Tray		Appelez-nous	-
2	68866-5		Seal 72``		Appelez-nous	-
2	67730-1		Seal, Front Corner		Appelez-nous	-
3	WP61004888		Motor, Evaporator Fan   (Replaces: 54482-10)			Immediately	$ 104.99
3	60565-1		Wire Harness		Appelez-nous	-
4	64856-1		Bracket, Fan Motor		Appelez-nous	-
4	400015-12		Screw		Appelez-nous	-
5	64359-1		Blade, Evaporator Fan		Appelez-nous	-
6	420092-900		Washer, Spring		Appelez-nous	-
7	60608-2		Orifice, Fan Blade		Appelez-nous	-
8	68592-1		Tunnel, Air		Appelez-nous	-
8	66325-34		Seal, Air Tunnel----na		Appelez-nous	-
9	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
10	66403-1		Cover, Evaporator		Appelez-nous	-
11	68946-1		Seal		Appelez-nous	-
11	66460-1		Bottom, Frz.		Appelez-nous	-
12	WP61002140		Ice Cube Tray   (Replaces: 60112-1)				$ 18.23
13	68259-1		Trivet		Appelez-nous	-
14	24580-3		Tip		Appelez-nous	-
15	66480-4		Cover, Plenum		Appelez-nous	-
16	67557-1		Plug Button		Appelez-nous	-
16	66920-2		Plug Button		Appelez-nous	-
17	W10833902		Clamp, Tubing   (Replaces: 53516-8)				$ 9.89
17	WP33002917		Screw   (Replaces: 65275-1)			Immediately	$ 6.90
18	WPM0114003		Clamp, Spring   (Replaces: 60333-4)				$ 9.95
19	WPB5705307		Tubing   (Replaces: 67579-8)				$ 11.19
20	68387-1		Cap, Grommet		Appelez-nous	-
21	68307-1		Grommet, Water Entry		Appelez-nous	-
22	65517-1		Clip		Appelez-nous	-
22	68187-1		Cap, Connector		Appelez-nous	-
