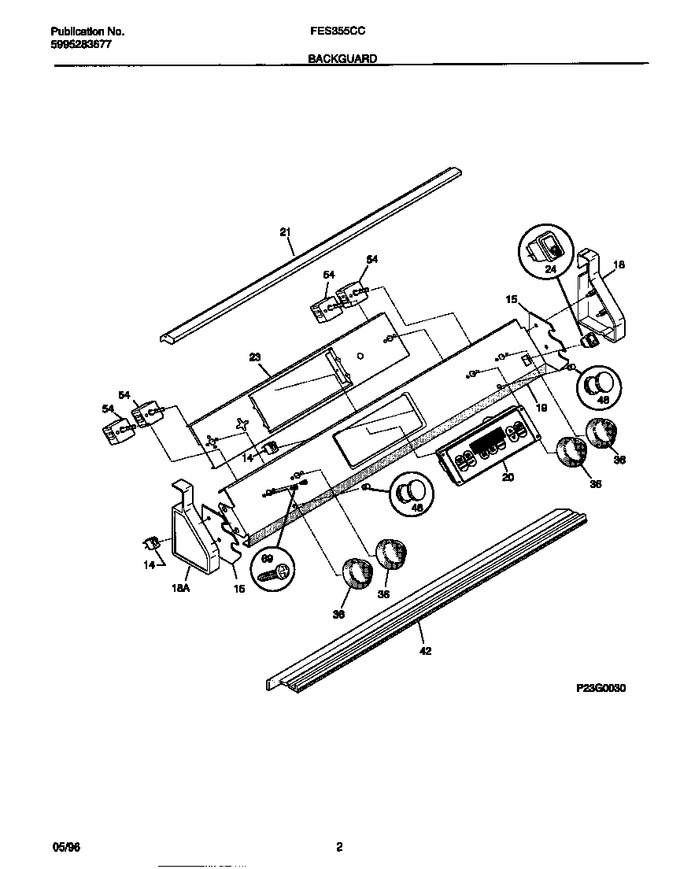

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 5303051533 | Light-lamp/indicator |
|
$ 53.81 | |||||
| 15 | 5303311123 | Support-backguard, (2) |
|
- | |||||
| 18 | 5303304669 | End Cap, Almond, Rh |
|
- | |||||
| 18 | 5303304672 | End Cap, Almond, Lh |
|
- | |||||
| 19 | 318005502 | Panel-control, Almond |
|
- | |||||
| 20 | 318012916 | Clock/timer, Electronic |
|
- | |||||
| 21 | 318027802 | Trim-backguard, Top |
|
- | |||||
| 24 | 5303304693 | Switch-light/lamp, Rocker Type, Almond |
|
- | |||||
| 36 | 5303304674 | Knob-surface Unit, Almond, (4) |
|
- | |||||
| 42 | 318106902 | Trim-vent, Almond |
|
- | |||||
| 46 | 5303271239 | Lens-light/lamp, Indicator |
|
- | |||||
| 54 | 318120501 | Switch-surface Unit, Small, (4) |
|
$ 244.13 | |||||
| 69 | 5303323137 | Screw, Switch Mtg, (6) (Replaces: 5303305528) |
|
$ 11.88 | |||||
| 23A | 318015000 | Bracket-clock Mtg |
|
- | |||||
| 23B | 318015501 | Bracket-clock Mtg |
|
- |
