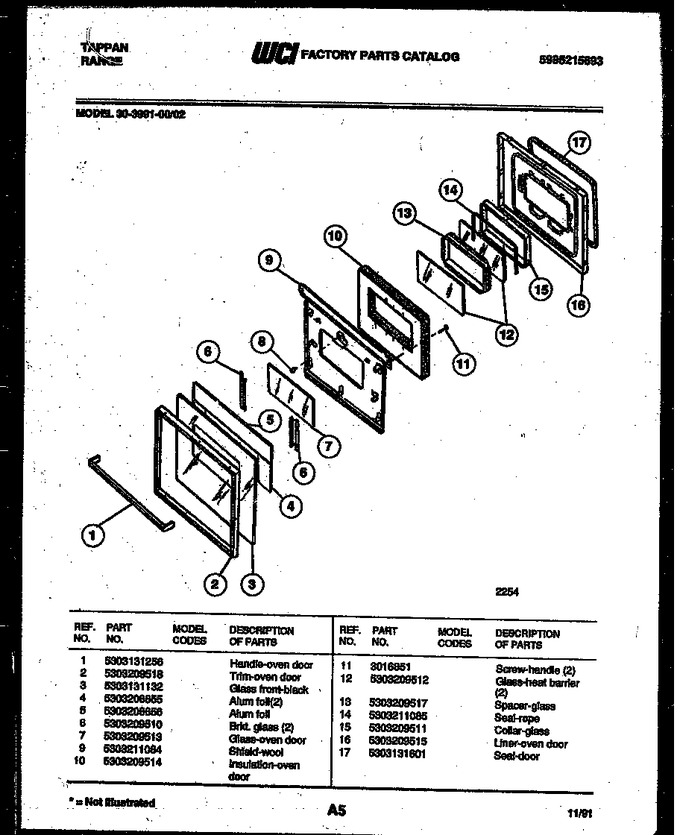

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303131256 | Handle, Oven Door |
|
- | |||||
| 2 | 5303209518 | Trim-oven Door |
|
- | |||||
| 3 | 5303131132 | Glass Front (black) |
|
- | |||||
| 4 | 5303208655 | Alum Foil (2) |
|
- | |||||
| 5 | 5303208656 | Alum Foil |
|
- | |||||
| 6 | 5303209510 | Brkt-glass (2) |
|
- | |||||
| 7 | 5303209513 | Glass Oven Door |
|
- | |||||
| 9 | 5303211084 | Shield-wool |
|
- | |||||
| 10 | 5303209514 | Insulation-oven Door |
|
- | |||||
| 11 | 3016851 | Screw, Handle (2) |
|
- | |||||
| 12 | 5303209512 | Glass Heat Barrier (2) |
|
$ 150.41 | |||||
| 13 | 5303209517 | Spacer-glass |
|
- | |||||
| 14 | 5303211085 | Seal-rope |
|
$ 44.00 | |||||
| 15 | 5303209511 | Collar-glass |
|
- | |||||
| 16 | 5303209515 | Liner-oven Door |
|
- | |||||
| 17 | 5303131601 | Seal, Door |
|
$ 374.63 |
