SELECT A DIAGRAM
01 - Freezer Compartment

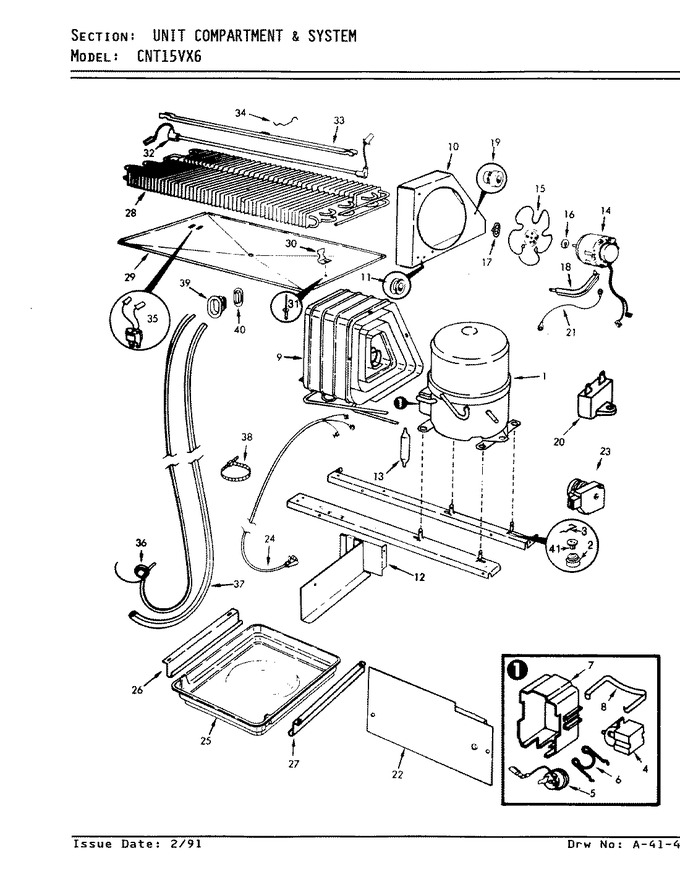

02 - Unit Compartment & System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10439652 | Compressor (Replaces: RA1011) |
|
$ 379.03 | |||||
| 2 | 17245-4 | Grommet, Compressor |
|
- | |||||
| 3 | 52778-2 | Clip |
|
- | |||||
| 3 | WP681414 | Screw, Compressor Rail (Replaces: 414011-1) |
|
Immediately | $ 7.07 | ||||
| 4 | 2154436 | Relay, Start (Replaces: 66588-1) |
|
$ 121.45 | |||||
| 5 | 63294-12 | Overload |
|
- | |||||
| 6 | 65887-1 | Clip, Overload |
|
- | |||||
| 7 | 66589-1 | Cover, Terminal |
|
- | |||||
| 8 | 65886-1 | Clip, Terminal Cover |
|
- | |||||
| 9 | RA43871-1 | Condenser |
|
- | |||||
| 9 | 60408-1 | U-nut, Condenser |
|
- | |||||
| 10 | 66228-1 | Shroud, Condenser |
|
- | |||||
| 11 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 11 | 53351-1 | Grommet, Condenser Tubing |
|
- | |||||
| 12 | 66493-1 | Baffle, Air Divider |
|
- | |||||
| 13 | WPW10143759 | Drier (Replaces: 13900) |
|
Immediately | $ 27.70 | ||||
| 14 | 833697 | Motor, Condenser Fan (Replaces: 67560-1) |
|
Immediately | $ 79.34 | ||||
| 14 | 408015-1 | Screw |
|
- | |||||
| 15 | WP12587601 | Blade, Condenser Fan (Replaces: 60683-1) |
|
$ 114.00 | |||||
| 16 | 19913-4 | Washer |
|
- | |||||
| 17 | 19914-1 | Speednut |
|
- | |||||
| 18 | 66225-1 | Bracket, Fan Motor |
|
- | |||||
| 19 | 56933-1 | Grommet, Bracket |
|
- | |||||
| 20 | 65889-1 | Capacitor, Run |
|
- | |||||
| 20 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 21 | 29675-3 | Ground Wire |
|
- | |||||
| 22 | 66338-1 | Cover, Unit Compartment |
|
- | |||||
| 22 | WP488729 | Screw (Replaces: 9986-45) |
|
Immediately | $ 7.01 | ||||
| 23 | WP4391974 | Timer, Defrost (Replaces: 65702-1) |
|
Immediately | $ 171.43 | ||||
| 23 | 405007-1 | Screw |
|
- | |||||
| 24 | 52890-2 | Cord, Power |
|
- | |||||
| 25 | 68236-1 | Pan, Drain |
|
$ 89.75 | |||||
| 26 | 60555-1 | Rail, Drain Pan (rt) |
|
- | |||||
| 27 | 60555-2 | Rail, Drain Pan (lt) |
|
- | |||||
| 27 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 28 | RA43620-10 | Evaporator |
|
- | |||||
| 29 | 60101-7 | Tray, Drip |
|
- | |||||
| 30 | 60108-1 | Bracket, Coil To Tray |
|
- | |||||
| 31 | WP210720 | Rivet (Replaces: 26397-9) |
|
$ 12.14 | |||||
| 32 | WP60106-34 | Heater, Defrost (Replaces: 60106-34) |
|
Immediately | $ 126.43 | ||||
| 33 | 60109-4 | Shield, Defrost Heater |
|
- | |||||
| 34 | 60263-1 | Clip, Defrost Heater |
|
- | |||||
| 35 | WP52085-28 | Thermostat, Defrost (Replaces: 52085-28) |
|
$ 107.65 | |||||
| 36 | RA43645-13 | Heat Exchanger |
|
- | |||||
| 37 | 65398-1 | Cover, Heat Exchanger |
|
- | |||||
| 38 | WP2205813 | Wire Tie (Replaces: 66223-1) |
|
$ 6.95 | |||||
| 39 | 60068-1 | Grommet, Tube Entry |
|
- | |||||
| 40 | 68839-1 | Wire Harness |
|
- | |||||
| 41 | 52656-2 | Plug, Compressor |
|
- | |||||
| NI | 107099-3 | Manual, Use & Care |
|
- |
