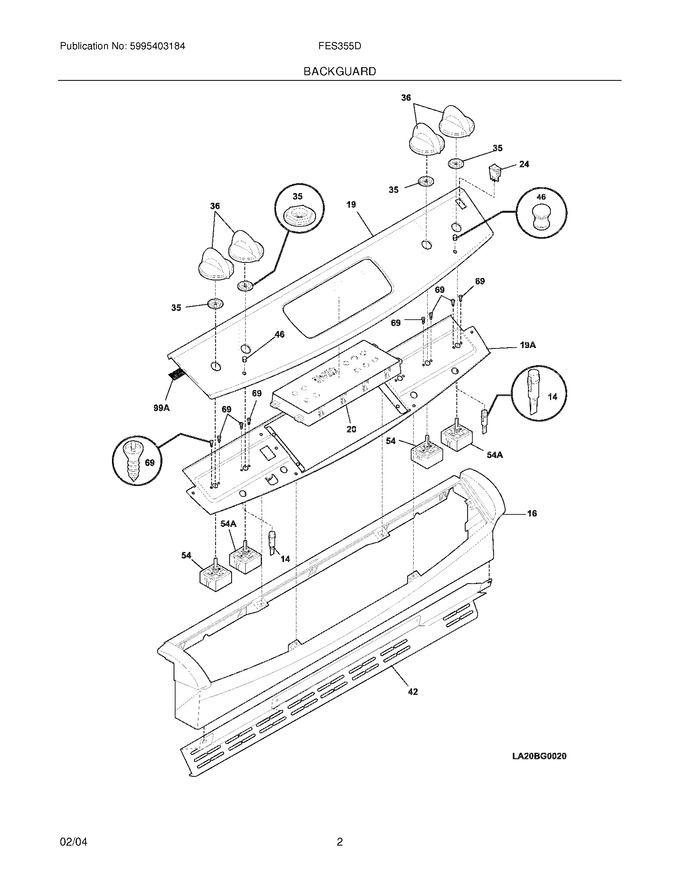

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318235000		Console,assy. ,white ,w/ End Caps		Appelez-nous	-
19	318235144		Panel,control ,white		Appelez-nous	-
35	318183101		Support,glass ,white ,(4)				$ 14.07
36	316223028		Knob,control ,white   (Replaces: 318229300)				$ 60.67
42	318224311		Trim,vent ,black ,bottom		Appelez-nous	-
46	318228300		Lens,indicator Light		Appelez-nous	-
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
19A	9910999SI		Panel,control Mtg.   (Replaces: 318224401)		Appelez-nous	-
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318044831		Light,indicator ,125v ,(2)   (Replaces: 318044825)				$ 16.69
F20	318185446		Clock/timer,electronic ,white ,es300				$ 406.35
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F54	903136-9010		Switch,surface Unit ,single   (Replaces: 318220020)			Immediately	$ 107.42
F54A	318220021		Switch,surface Unit ,large		Appelez-nous	-
NI	316220804		Overlay,clock ,white ,es300			Immediately	$ 42.53
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
