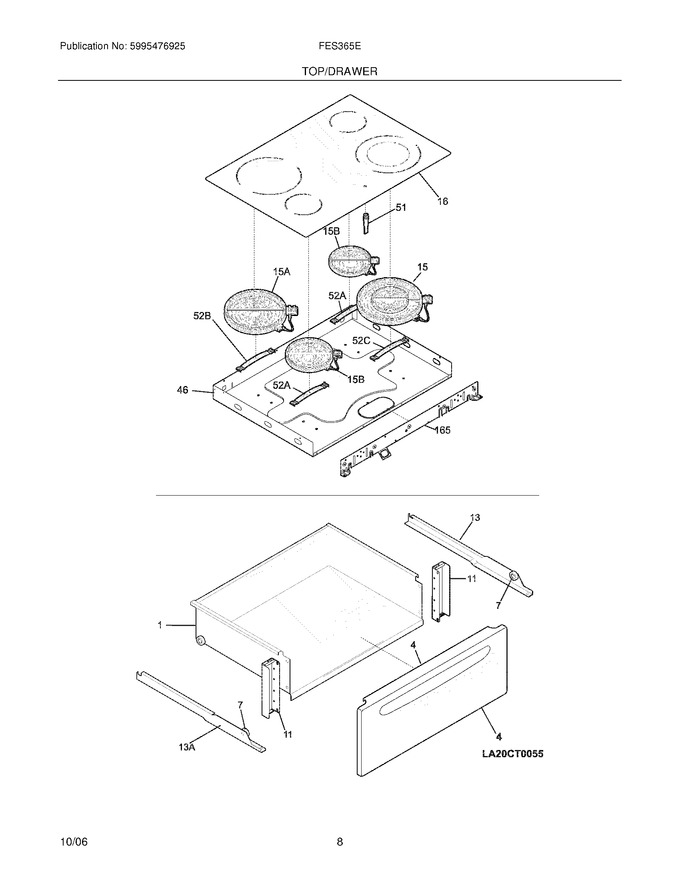

07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318298903		Panel,drawer ,black ,front		Appelez-nous	-
7	318332200		Roller,nylon		Appelez-nous	-
11	318298601		Bracket,drawer Support ,(2)		Appelez-nous	-
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318223614		Main Top,glass Assy. ,black				$ 465.65
46	318225410		Box,burner		Appelez-nous	-
165	318227503		Plate,mounting				$ 247.59
13A	318018101		Channel-drawer,lh				$ 63.11
52A	318122006		Spring,element Mtg ,small				$ 66.25
52B	318122007		Spring,element Mtg ,large				$ 53.45
52C	318122010		Spring,element Mtg ,3000w				$ 62.51
F15	316555800		Element,surface ,6/9 ,1200/2500w ,dual Radiant   (Replaces: 318198932)			Immediately	$ 138.90
F15A	318198834		Element,surface ,large/8`` ,2200 W				$ 205.36
F15B	318178110		Element,surface ,6`` ,1200 W ,(2)   (Replaces: 318198830)			Immediately	$ 122.86
F51	318044823		Light,indicator ,125v ,(6)		Appelez-nous	-
NI	318228925		Harness,wiring ,cooktop				$ 100.85
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
