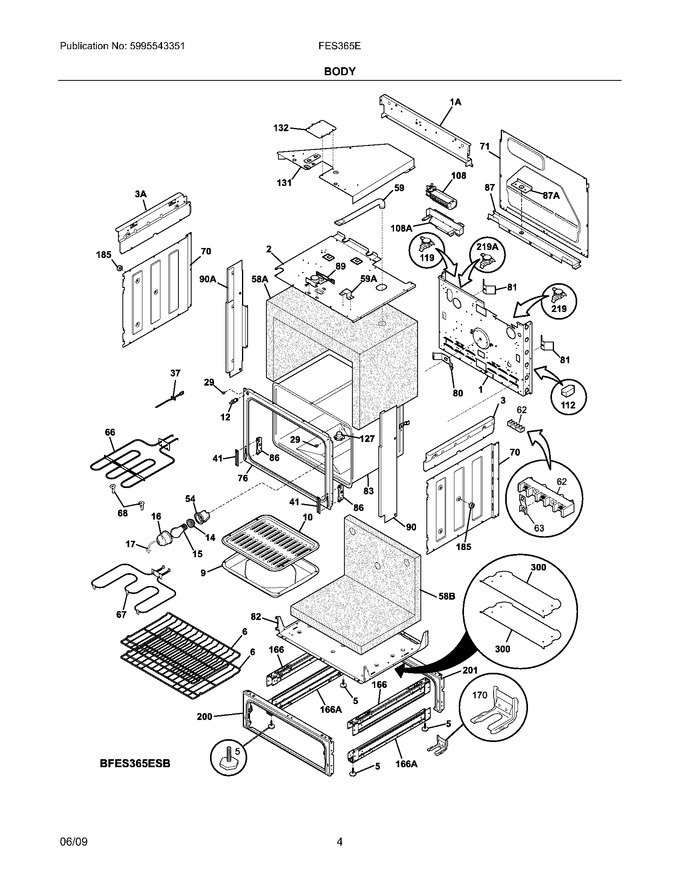

1	318259220		Back,main				$ 88.31
2	318258902		Shield,insulation ,upper		Appelez-nous	-
3	318225210		Panel,bodyside ,upper Rh				$ 55.86
5	318175510		Screw,leveling   (Replaces: 318175508)			Immediately	$ 24.26
6	318345207		Rack,oven				$ 69.20
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	316517600		Spacer,oven Door				$ 12.05
54	318222400		Housing,oven Light				$ 58.22
59	318072560		Duct,oven Vent		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
63	318264200		Plate,grounding Strap				$ 23.51
68	5304403015		Support,hanger ,(4) ,broil Element				$ 35.04
70	318259100		Shield,insulation ,sides ,(2)				$ 63.05
71	318260007		Panel,rear Box				$ 102.90
76	318056292		Front,oven				$ 131.67
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258707		Shield,insulation ,lower				$ 108.24
83	318261403		Liner,oven Assy		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318260608		Bracket,cable Mtg.		Appelez-nous	-
90	5304511889		Panel,filler ,black ,rh   (Replaces: 318296904)				$ 74.42
127	318317100		Adapter Assembly,vent Tube ,w/converter				$ 75.13
131	318272901		Box,vent				$ 59.01
132	318003000		Plate,shield		Appelez-nous	-
166	318298410		Bracket,base Support ,(2)				$ 75.83
170	318335500		Anti-tip & Accessories				$ 46.94
185	318165800		Spacer				$ 17.72
200	318335600		Frame & Wheel Assembly,black				$ 133.82
201	318298233		Frame,drawer ,black   (Replaces: 318298230)				$ 45.36
300	318326501		Shield,heat		Appelez-nous	-
1A	318225110		Panel,main Back ,upper				$ 63.05
3A	318225211		Panel,bodyside ,upper Lh				$ 48.25
58A	318386100		Insulation,oven Wrapper		Appelez-nous	-
58B	318133791		Insulation,oven Back ,back/bottom		Appelez-nous	-
59A	318261600		Bracket,vent Tube		Appelez-nous	-
87A	318111806		Plate,cord Set Mtg				$ 11.68
90A	5304511890		Panel,filler ,black ,lh   (Replaces: 318296905)				$ 81.14
F108	318251300		Bracket,fan Support				$ 54.60
F108	318073028		Motor,blower			Immediately	$ 271.69
F112	318112703		Relay				$ 66.99
F119	318005202		Switch,thermal Cutout			Immediately	$ 124.37
F12	318394803		Switch,light ,door   (Replaces: 318394801)			Immediately	$ 44.23
F166	318298403		Bracket,base Support ,lower ,(2)		Appelez-nous	-
F219	318003614		Thermostat,safety			Immediately	$ 84.61
F219	318003624		Thermostat,safety ,1.375`` Mtg ,105/120   (Replaces: 318003613)			Immediately	$ 23.39
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
F67	318255401		Element,bake ,3400w			Immediately	$ 216.58
F89	318261230		Motor,latch Assy   (Replaces: 318261205)				$ 129.80
FNI	318224973		Harness,wiring ,main				$ 574.82
NI	5304400192		Retainer Wire		Appelez-nous	-
NI	318235301		Connector Assy.,w/3 Lugs ,& Instructions   (Replaces: 318235300)				$ 29.06
NI	318531701		Spacer,(2)				$ 12.05
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	3051050		Screw-shoulder				$ 12.29
NI	5303051099		Nut, Hex, 10-32		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,silver ,(4)				$ 15.17
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
