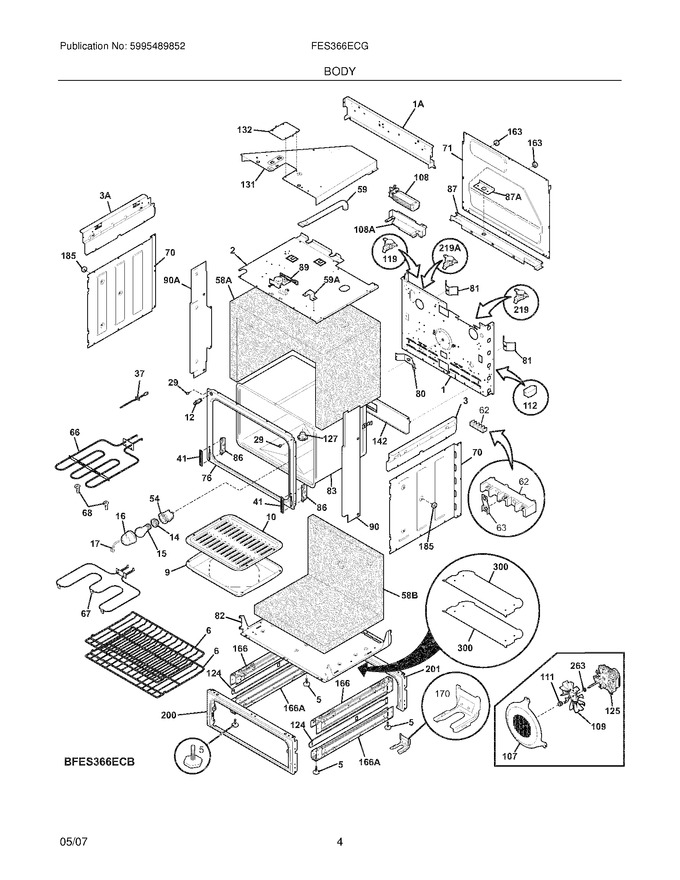

01 - Cover
03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318259205 | Back,main |
|
- | |||||
| 2 | 318258902 | Shield,insulation ,upper |
|
- | |||||
| 3 | 318225210 | Panel,bodyside ,upper Rh |
|
$ 55.86 | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 318345207 | Rack,oven |
|
$ 69.20 | |||||
| 9 | 316081900 | Pan,broileroptional Access0ry |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert,broiler Panoptional Accessory |
|
$ 68.85 | |||||
| 12 | 316445501 | Switch,oven Light ,door Frame |
|
$ 90.01 | |||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Bulb/lamp,light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 29 | 318147430 | Bumper,(2) (Replaces: 318147411) |
|
$ 18.95 | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 318222400 | Housing,oven Light |
|
$ 58.22 | |||||
| 59 | 318072560 | Duct,oven Vent |
|
- | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 63 | 318264200 | Plate,grounding Strap |
|
$ 23.51 | |||||
| 66 | 318255605 | Element,broil ,2750w (Replaces: 318255600) |
|
Immediately | $ 192.78 | ||||
| 68 | 5304403015 | Support,hanger ,(2) ,broil Element |
|
$ 35.04 | |||||
| 70 | 318259100 | Shield,insulation ,sides ,(2) |
|
$ 63.05 | |||||
| 71 | 318260007 | Panel,rear Box |
|
$ 102.90 | |||||
| 76 | 318056217 | Front,oven |
|
$ 143.06 | |||||
| 80 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 318258707 | Shield,insulation ,lower |
|
$ 108.24 | |||||
| 83 | 318261404 | Liner,oven Assy |
|
$ 280.88 | |||||
| 86 | 318342400 | Receptacle,hinge |
|
$ 43.24 | |||||
| 87 | 318260608 | Bracket,cable Mtg. |
|
- | |||||
| 90 | 5304511889 | Panel,filler ,black ,rh (Replaces: 318296904) |
|
$ 74.42 | |||||
| 107 | 318219405 | Cover,fan (Replaces: 318219401) |
|
$ 82.69 | |||||
| 109 | 318398302 | Blade,fan (Replaces: 316136400) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 124 | 318300800 | Backet,glide ,(2) |
|
$ 205.70 | |||||
| 127 | 318317100 | Adapter Assembly,vent Tube ,w/converter |
|
$ 75.13 | |||||
| 131 | 318272900 | Box,vent |
|
- | |||||
| 132 | 318003000 | Plate,shield |
|
- | |||||
| 142 | 318123910 | Deflector |
|
- | |||||
| 163 | 318014105 | Spacer,(2) |
|
- | |||||
| 166 | 318298410 | Bracket,base Support ,(2) |
|
$ 75.83 | |||||
| 170 | 318335500 | Anti-tip & Accessories |
|
$ 46.94 | |||||
| 185 | 318165800 | Spacer |
|
$ 17.72 | |||||
| 200 | 318335600 | Frame & Wheel Assembly,black |
|
$ 133.82 | |||||
| 201 | 318298210 | Frame,drawer |
|
$ 81.95 | |||||
| 263 | 316008401 | Washer,flat (Replaces: 316136500) |
|
$ 11.34 | |||||
| 300 | 318326500 | Shield,heat |
|
- | |||||
| 1A | 318225110 | Panel,main Back ,upper |
|
$ 63.05 | |||||
| 3A | 318225211 | Panel,bodyside ,upper Lh |
|
$ 48.25 | |||||
| 58A | 318285055 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318285056 | Insulation,oven Back |
|
$ 76.53 | |||||
| 59A | 318261600 | Bracket,vent Tube |
|
- | |||||
| 87A | 318111806 | Plate,cord Set Mtg |
|
$ 11.68 | |||||
| 90A | 5304511890 | Panel,filler ,black ,lh (Replaces: 318296905) |
|
$ 81.14 | |||||
| F108 | 318251300 | Bracket,fan Support |
|
$ 54.60 | |||||
| F108 | 318073028 | Motor,blower (Replaces: 318073018) |
|
Immediately | $ 271.69 | ||||
| F112 | 318112703 | Relay |
|
$ 66.99 | |||||
| F119 | 318005202 | Switch,thermal Cutout |
|
Immediately | $ 124.37 | ||||
| F125 | 5304467898 | Motor,fan (Replaces: 316415800) |
|
Immediately | $ 225.67 | ||||
| F125 | 5303316994 | Insulation,3.81 X 3.13 |
|
- | |||||
| F166 | 318298403 | Bracket,base Support ,lower ,(2) |
|
- | |||||
| F219 | 318003624 | Thermostat,safety ,1.375`` Mtg ,105/120 (Replaces: 318003613) |
|
Immediately | $ 23.39 | ||||
| F219 | 318003614 | Thermostat,safety |
|
Immediately | $ 84.61 | ||||
| F37 | 316217002 | Probe,oven Temp |
|
Immediately | $ 61.23 | ||||
| F67 | 318255401 | Element,bake ,3400w |
|
Immediately | $ 216.58 | ||||
| F89 | 318261230 | Motor,latch Assy (Replaces: 318261205) |
|
$ 129.80 | |||||
| NI | 5304415832 | Screw,8-18 X 0.406 |
|
- | |||||
| NI | 318249401 | Tube,protector |
|
$ 6.23 | |||||
| NI | 5304436875 | Screw,8-18 X 1/2,black |
|
$ 14.41 | |||||
| NI | 5303323129 | Screw,8 X 0.750 |
|
- | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 5303323139 | Screw,10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 318224975 | Harness,wiring ,main |
|
$ 189.89 | |||||
| NI | 318235301 | Connector Assy.,w/3 Lugs ,& Instructions (Replaces: 318235300) |
|
$ 29.06 | |||||
| NI | 3051050 | Screw-shoulder |
|
$ 12.29 | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 |
