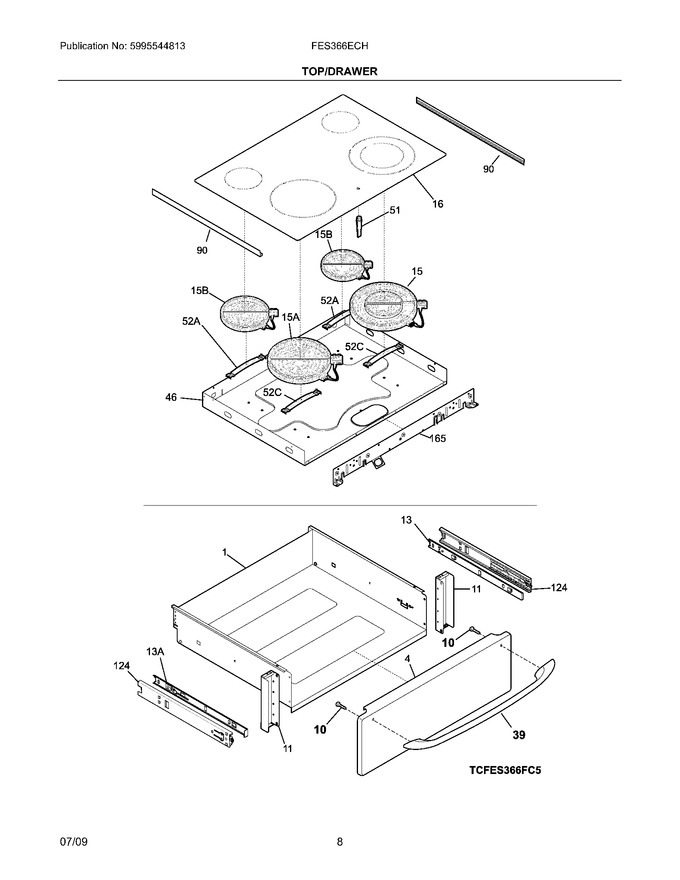

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318107308 | Drawer |
|
$ 100.73 | |||||
| 4 | 318298829 | Panel,drawer ,stainless ,front (Replaces: 318298825) |
|
$ 210.92 | |||||
| 10 | 5304452028 | Screw,handle Mtg ,10-14 X 1/2 ,(2) |
|
$ 11.02 | |||||
| 11 | 318298601 | Bracket,drawer Support ,(2) |
|
- | |||||
| 13 | 318259507 | Glide,warmer ,inner Rh |
|
Immediately | $ 69.01 | ||||
| 16 | 318223634 | Main Top,glass Assy. ,black |
|
$ 511.14 | |||||
| 39 | 316270200 | Handle,door ,black |
|
$ 136.40 | |||||
| 46 | 318225429 | Box,burner |
|
$ 84.21 | |||||
| 90 | 318368001 | Channel,glass Protector ,(2) |
|
$ 22.98 | |||||
| 124 | 316105501 | Glide,outer/rh & Lh ,(2) |
|
$ 90.72 | |||||
| 165 | 318227503 | Plate,mounting |
|
$ 247.59 | |||||
| 13A | 318259506 | Glide,warmer ,inner Lh |
|
$ 69.01 | |||||
| 52A | 318122006 | Spring,element Mtg ,small |
|
$ 66.25 | |||||
| 52C | 318122010 | Spring,element Mtg ,3000w |
|
$ 62.51 | |||||
| F15 | 316555800 | Element,dual ,9``/6`` ,surface ,1300w/1200w,(2) ,radiant (Replaces: 316418401) |
|
Immediately | $ 138.90 | ||||
| F15A | 318198838 | Element,surface ,9`` ,large ,2700 W |
|
$ 315.47 | |||||
| F15B | 318178110 | Element,surface ,6`` ,1200w ,(2) ,radiant (Replaces: 318198830) |
|
Immediately | $ 122.86 | ||||
| F51 | 318044828 | Light,indicator ,125v |
|
$ 36.12 | |||||
| FNI | 318228925 | Harness,wiring ,cooktop |
|
$ 100.85 | |||||
| FNI | 318231843 | Harness,wiring ,pilot Light |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303300265 | Screw,8-18 X 1/2 ,silver ,(4) |
|
$ 15.17 | |||||
| NI | 5304453707 | Screw, 8-32 X 3/8 (Replaces: 5303311333) |
|
Immediately | $ 15.92 |
