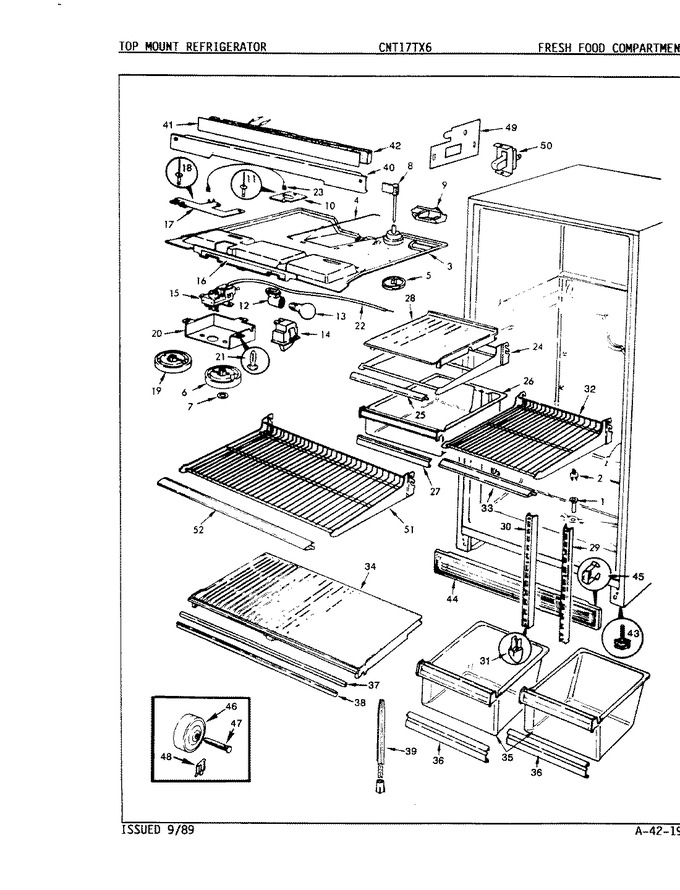

SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	54531-8		Grommet		Appelez-nous	-
2	65039-1		Cap, Drain Tube		Appelez-nous	-
3	60085-51		Top, F.f. Compartment		Appelez-nous	-
4	60078-3		Rod		Appelez-nous	-
5	60082-3		Crank, Frzr Control		Appelez-nous	-
6	W11233072		Screw   (Replaces: 405016-103)			Immediately	$ 12.62
6	60061-3		Knob		Appelez-nous	-
7	420092-900		Washer, Spring		Appelez-nous	-
8	66609-1		Damper		Appelez-nous	-
9	60120-2		Deflector		Appelez-nous	-
10	60147-2		Bracket, Light Socket		Appelez-nous	-
11	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
12	60577-1		Socket, Light		Appelez-nous	-
13	31956-0		Bulb, Light		Appelez-nous	-
14	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
14	54653-28		Cord, Switch/light		Appelez-nous	-
15	WP68601-6		Control, Temperature   (Replaces: 66545-1)			Immediately	$ 233.80
15	406013-1		Screw		Appelez-nous	-
16	60571-46		Insert		Appelez-nous	-
17	29675-22		Ground Wire		Appelez-nous	-
17	60147-1		Bracket, Control		Appelez-nous	-
18	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
19	60061-1		Knob		Appelez-nous	-
20	405012-1		Screw		Appelez-nous	-
20	60083-1		Cover, Temperature Control		Appelez-nous	-
21	28013-2		Rivet, Air Tunnel		Appelez-nous	-
22	4008-12		Plastic Tube		Appelez-nous	-
23	29675-28		Ground Wire		Appelez-nous	-
24	60416-10		Shelf		Appelez-nous	-
25	60414-28		Trim		Appelez-nous	-
26	66490-8		Pan, Meat		Appelez-nous	-
27	68129-21		Insert		Appelez-nous	-
28	60075-7		Cover, Meat Pan		Appelez-nous	-
29	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
30	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
30	400037-28		Screw		Appelez-nous	-
31	66834-1		Shelf, Crisper		Appelez-nous	-
32	68221-116		Pan, Crisper		Appelez-nous	-
33	68129-20		Insert		Appelez-nous	-
34	60454-9		Trim, Crisper Shelf		Appelez-nous	-
35	12001957		Support, Crisper Shelf   (Replaces: 66105-1)				$ 3.35
36	60417-14		Shelf		Appelez-nous	-
37	65797-1-AM		Divider, Mullion (alm)		Appelez-nous	-
37	9986-117		Screw		Appelez-nous	-
37	60560-1		Wire Harness		Appelez-nous	-
38	60105-7		Heater Wire		Appelez-nous	-
39	60140-1		Insulation		Appelez-nous	-
40	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
41	60138-6		Kickplate		Appelez-nous	-
42	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
42	60100-1		Clip, Kickplate				$ 5.85
43	29834-2		Wheel		Appelez-nous	-
44	29835-2		Pin, Wheel		Appelez-nous	-
45	60216-1		Clip		Appelez-nous	-
46	60414-28		Trim		Appelez-nous	-
47	60583-1		Bracket, Switch		Appelez-nous	-
48	60585-1		Switch, Mullion Heater		Appelez-nous	-
48	402013-1		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
