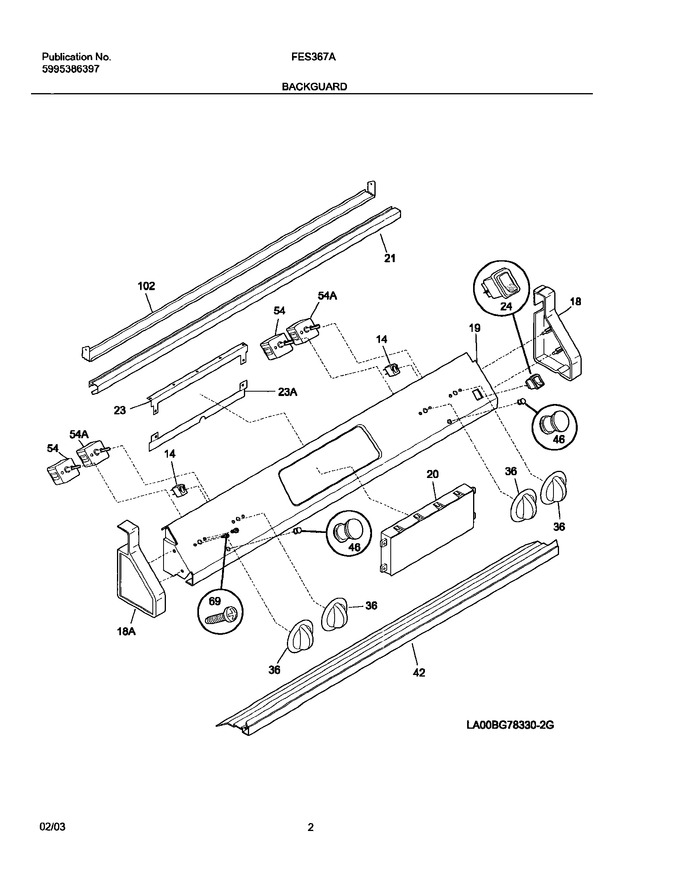

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	318039312		End Cap,black ,rh		Appelez-nous	-
19	318182991		Panel,control Mtg. ,black		Appelez-nous	-
21	318027803		Trim,backguard ,black ,top		Appelez-nous	-
23	318015042		Bracket,clock Mtg ,upper		Appelez-nous	-
36	318196634		Knob,control ,black				$ 64.50
42	318106927		Trim,backguard ,black ,bottom				$ 188.06
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
69	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
102	318055601		Bracket-mounting				$ 34.13
18A	318039313		End Cap,black ,lh		Appelez-nous	-
23A	318015043		Bracket,clock Mtg ,lower		Appelez-nous	-
F14	318076700		Light,indicator ,125v		Appelez-nous	-
F20	318185414		Clock/timer,electronic ,black		Appelez-nous	-
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
F54	318293820		Switch,surface Unit ,small   (Replaces: 318220006)				$ 83.62
F54A	318293827		Switch,surface Unit ,large   (Replaces: 318220007)			Immediately	$ 90.82
NI	316220805		Overlay,clock ,black				$ 49.40
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
