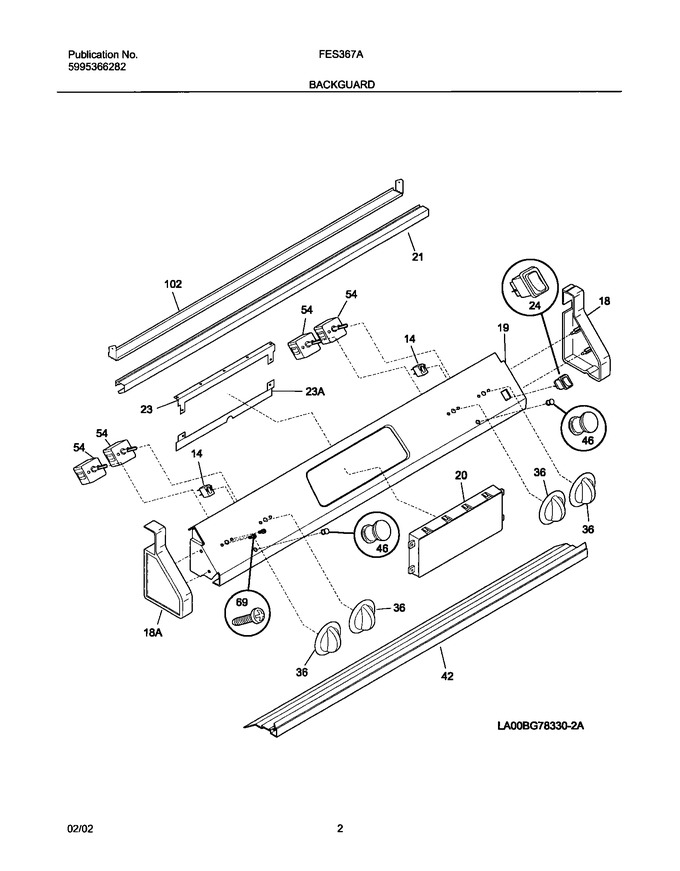

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	318039302		End Cap,bisque ,rh		Appelez-nous	-
19	318182992		Panel,control Mtg. ,bisque		Appelez-nous	-
21	318027807		Trim,backguard ,bisque ,top		Appelez-nous	-
23	318015042		Bracket,clock Mtg ,upper		Appelez-nous	-
36	318196635		Knob,control ,bisque		Appelez-nous	-
42	318106925		Trim,backguard ,bisque ,bottom		Appelez-nous	-
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
69	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
102	318055601		Bracket-mounting				$ 34.13
18A	318039303		End Cap,bisque ,lh		Appelez-nous	-
23A	318015043		Bracket,clock Mtg ,lower		Appelez-nous	-
F14	318076700		Light,indicator ,125v		Appelez-nous	-
F20	318185415		Clock/timer,electronic ,bisque		Appelez-nous	-
F24	318037520		Switch,rocker ,bisque ,oven Light				$ 61.64
F54	318120501		Switch-surface Unit				$ 244.13
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
