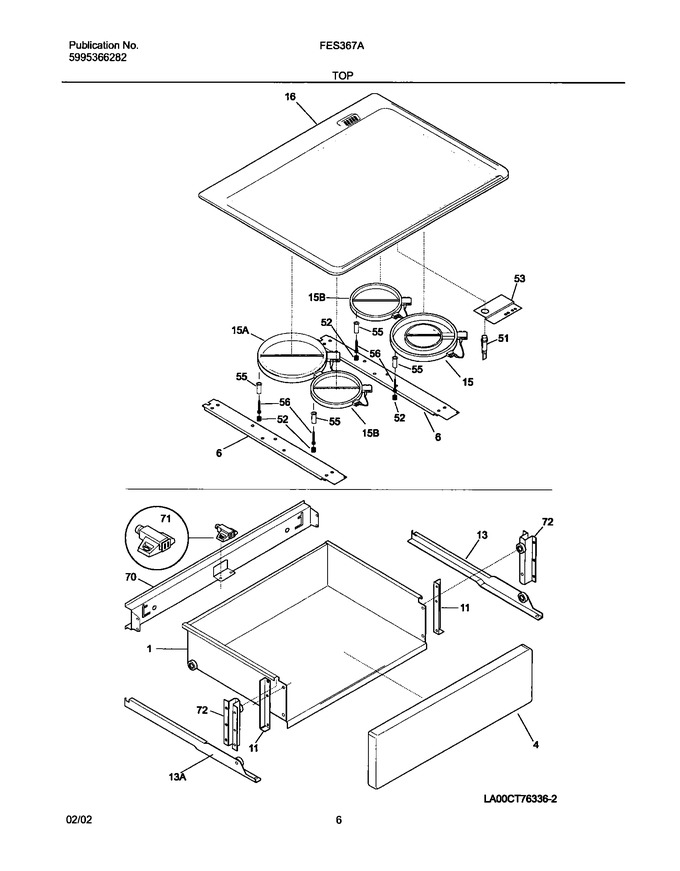

07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 5303310500)			Immediately	$ 143.39
4	318134011		Panel,drawer ,white ,front		Appelez-nous	-
6	318194800		Support,element ,(2)		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
16	318079548		Main Top,glass ,white		Appelez-nous	-
52	5303317177		Spring-element Mtg				$ 12.74
53	318125932		Bracket,indicator Light ,hot Surface		Appelez-nous	-
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
70	5303311143		Bracket,slide ,rear		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
13A	5303311130		Channel,drawer ,lh		Appelez-nous	-
F15	316135401		Element,surface ,9`` ,2500w ,radiant   (Replaces: 316224200)			Immediately	$ 80.96
F15A	318198834		Element,surface ,8`` ,2200 W ,radiant   (Replaces: 316010206)				$ 205.36
F15B	318198817		Element,surface ,6`` ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F51	318044820		Light,indicator ,red		Appelez-nous	-
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	5303325173		Cap-plug		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5304400427		Screw,6-20 X 1/2		Appelez-nous	-
