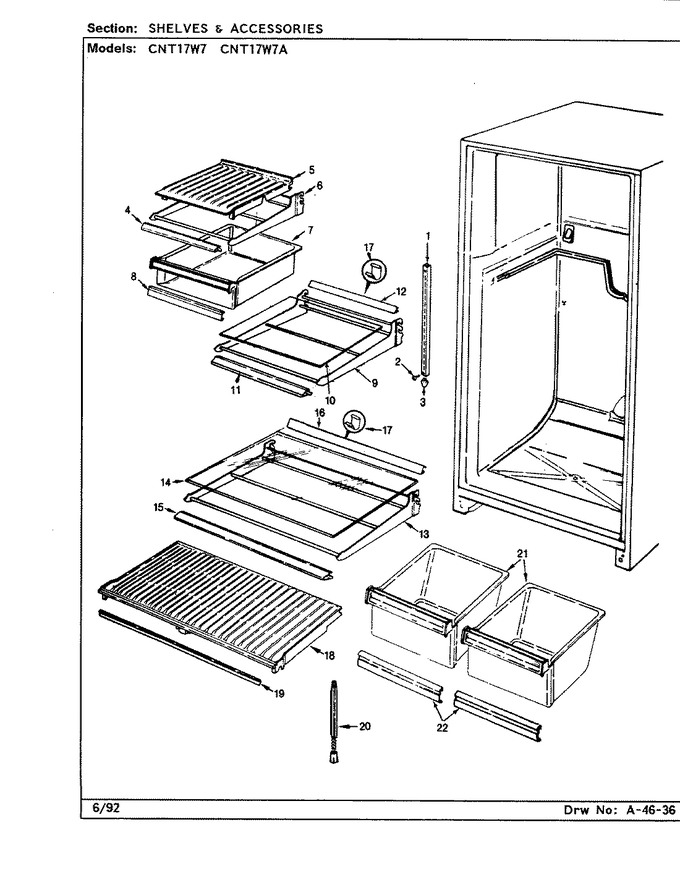

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
1	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	60340-1		End Cap, Center Rail		Appelez-nous	-
4	60524-6		Trim, Meat Shelf (front)		Appelez-nous	-
5	60075-7		Cover, Meat Pan		Appelez-nous	-
6	60416-13		Shelf, Meat		Appelez-nous	-
7	66636-37		Pan, Meat		Appelez-nous	-
8	60132-102		Handle, Meat Keeper		Appelez-nous	-
9	60570-49		Frame, Shelf		Appelez-nous	-
10	66604-29		Shelf		Appelez-nous	-
11	60524-30		Trim, Split Shelf (front)		Appelez-nous	-
12	65276-2		Trim, Split Shelf (rear)		Appelez-nous	-
13	60570-46		Frame, Shelf		Appelez-nous	-
14	66604-28		Shelf		Appelez-nous	-
15	60524-21		Trim, Full Shelf (front)		Appelez-nous	-
16	65276-34		Trim, Full Shelf (rear)		Appelez-nous	-
17	66333-1		Clip, Shelf Trim		Appelez-nous	-
18	66834-1		Shelf, Crisper		Appelez-nous	-
19	60454-9		Trim, Crisper Shelf		Appelez-nous	-
20	12001957		Support, Crisper Shelf   (Replaces: 66105-1)				$ 3.35
21	68221-122		Pan, Crisper		Appelez-nous	-
22	60132-103		Handle Crisper Pan		Appelez-nous	-
