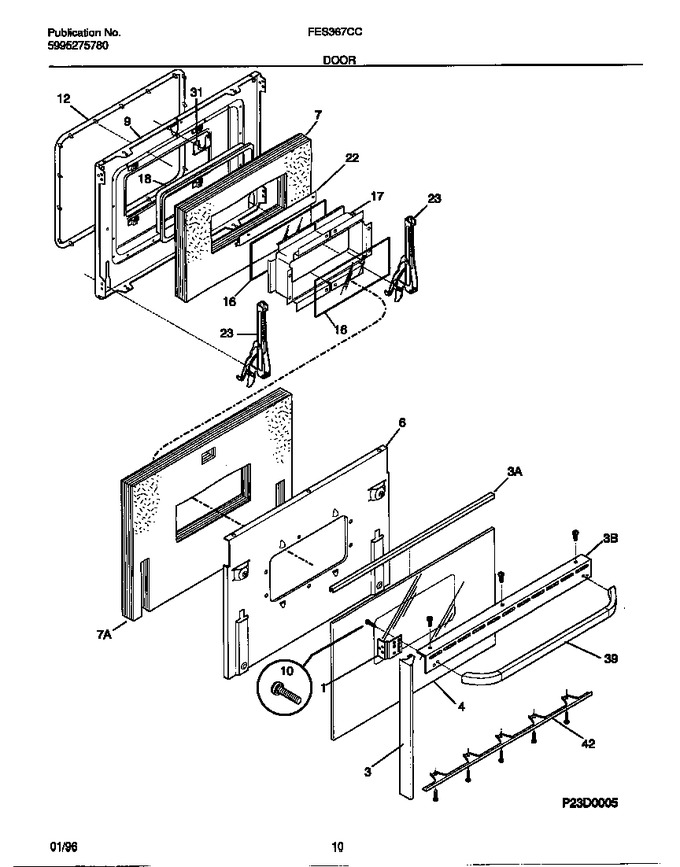

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim, Handle, (2)				$ 52.87
3	318028900		Trim-oven Door				$ 34.82
3	5303311200		Trim,oven Door ,black ,lower		Appelez-nous	-
3	318049201		Trim,oven Door ,black ,side		Appelez-nous	-
4	5303311199		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303311192		Baffle-door		Appelez-nous	-
7	5303311150		Insulation, Oven Door		Appelez-nous	-
7	5303310532		Insulation-door		Appelez-nous	-
10	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	5303310534		Spacer-glass		Appelez-nous	-
18	5303310531		Seal-rope		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	318040400		Handle-door, Black, Oven		Appelez-nous	-
42	318049001		Trim-vent Door, Black		Appelez-nous	-
23A	318024700		Hinge		Appelez-nous	-
23B	5303311306		Screw, 8-18 X 3/8 (not Illustrated)		Appelez-nous	-
9A	5303311193		Liner-oven Door		Appelez-nous	-
9B	5308007939		Plug, Door Liner (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
