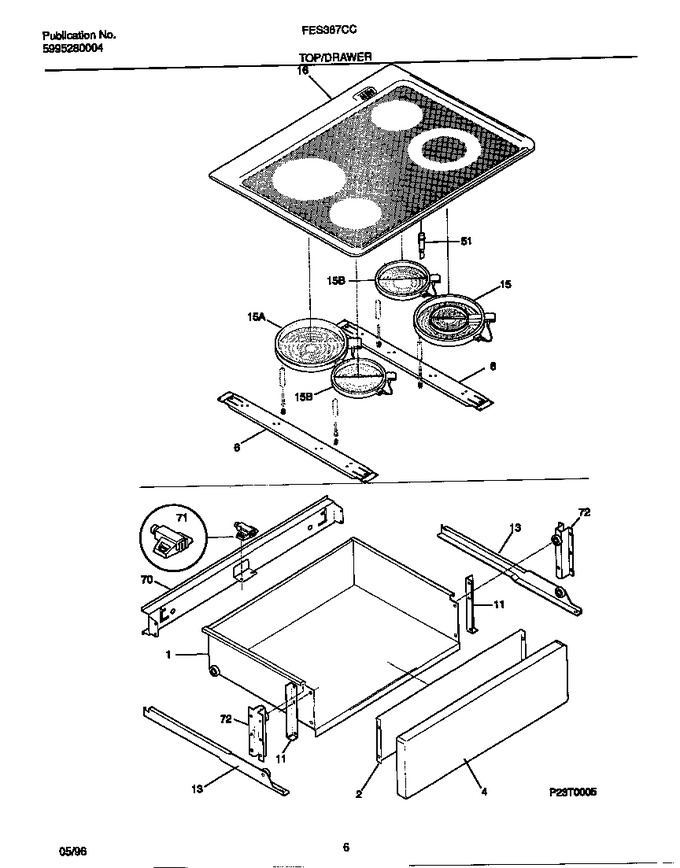

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
2	318108000		Liner, Drawer		Appelez-nous	-
4	5303311126		Panel-drawer		Appelez-nous	-
6	5303311190		Support-element		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
15	903118-9010		Element-surface, 2100w   (Replaces: 318050403)			Immediately	$ 236.18
15	318050407		Element-surface, 2000/1000w		Appelez-nous	-
15	318198817		Element-surface, 1200w   (Replaces: 318050402)			Immediately	$ 192.78
16	318079501		Main Top, White		Appelez-nous	-
51	5303297484		Light-indicator		Appelez-nous	-
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
*25973	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*25974	5303300414		Spacer, Cork & Rubber				$ 13.18
*25975	5303317177		Spring-element Mtg				$ 12.74
*25976	5303317178		Spacer-element				$ 2.42
*25977	5303317179		Screw-element				$ 2.42
13A	5303311129		Channel,drawer ,rh		Appelez-nous	-
13B	5303311130		Channel,drawer ,lh		Appelez-nous	-
