SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

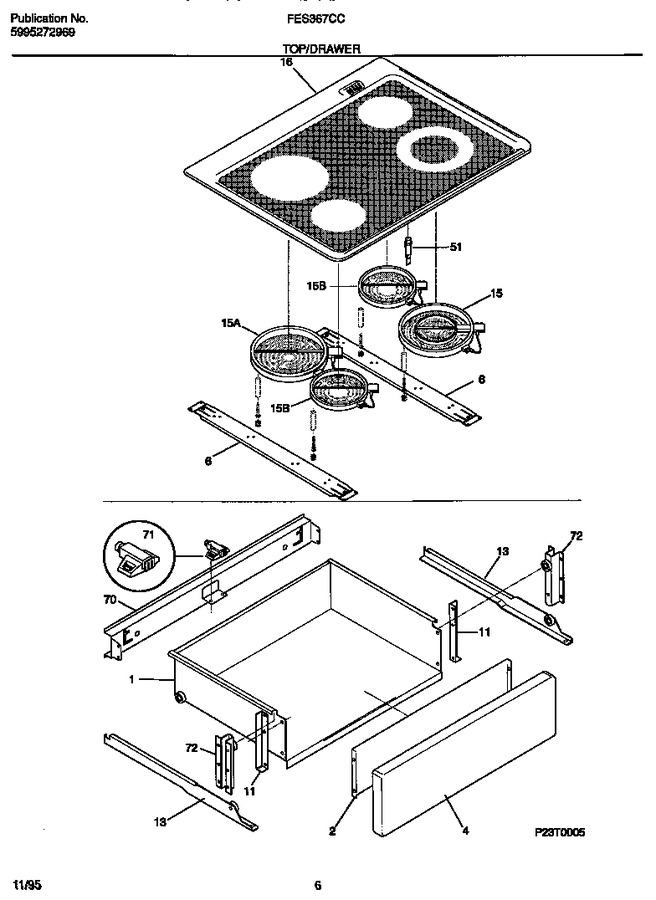

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
2	318108000		Liner, Drawer		Appelez-nous	-
4	5303311131		Panel-drawer, Almond		Appelez-nous	-
6	5303311190		Support-element		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
15	5303311188		Element-surface, 2100 W		Appelez-nous	-
15	5303311189		Element-surface, 1200 W		Appelez-nous	-
15	5303311187		Element-surface, 6``-9``		Appelez-nous	-
16	318079502		Main Top, Glass, Almond		Appelez-nous	-
51	5303297484		Light-indicator		Appelez-nous	-
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
13A	5303311129		Channel,drawer ,rh		Appelez-nous	-
13B	5303311130		Channel,drawer ,lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
