SELECT A DIAGRAM

01 - Cover

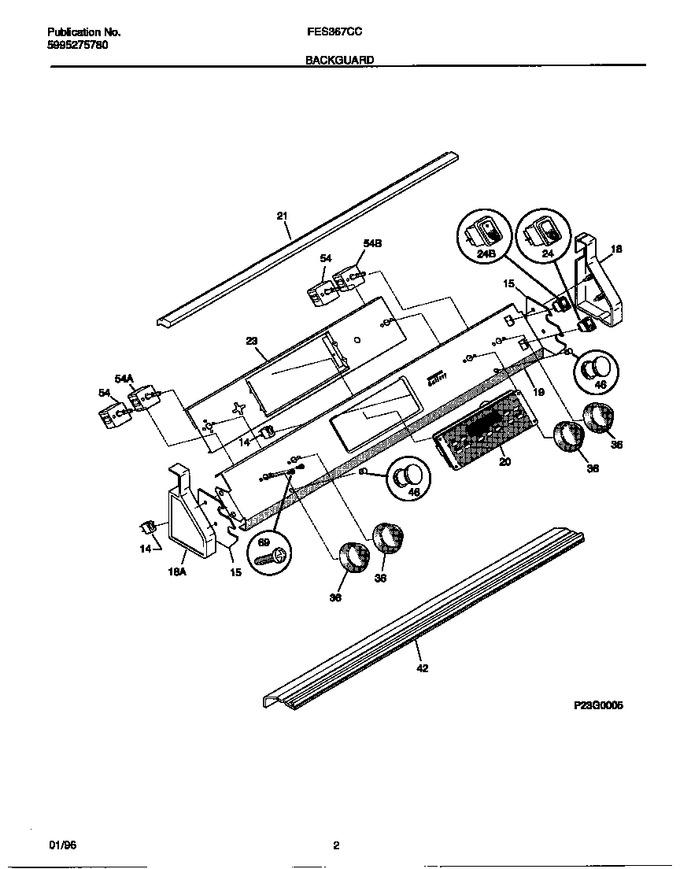

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303307285		End Cap, Almond, Rh & Lh		Appelez-nous	-
19	318005510		Panel-control		Appelez-nous	-
20	318012802		Clock/timer, Electronic		Appelez-nous	-
21	318027802		Trim-backguard, Top		Appelez-nous	-
23	318015000		Bracket-clock Mtg		Appelez-nous	-
24	316076302		Switch-rocker, Almond, Dual Element		Appelez-nous	-
24	316005608		Switch-rocker, Almond, Oven Light		Appelez-nous	-
36	318016304		Knob-surface Unit, Almond, Rr		Appelez-nous	-
42	5303304691		Trim-vent		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
54	5303300157		Switch-surface Unit, Small		Appelez-nous	-
54	5303300158		Switch-surface Unit, Large		Appelez-nous	-
54	5500-200		Switch-surface Unit, Double   (Replaces: 5303311186)			Immediately	$ 54.85
69	5303323137		Screw, Switch Mtg, (6)   (Replaces: 5303305528)				$ 11.88
*39640	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*39641	5303304692		Plate, Backup, Light Switch		Appelez-nous	-
*39642	5303311528		Screw, Oval Hd, 20 X 5/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
