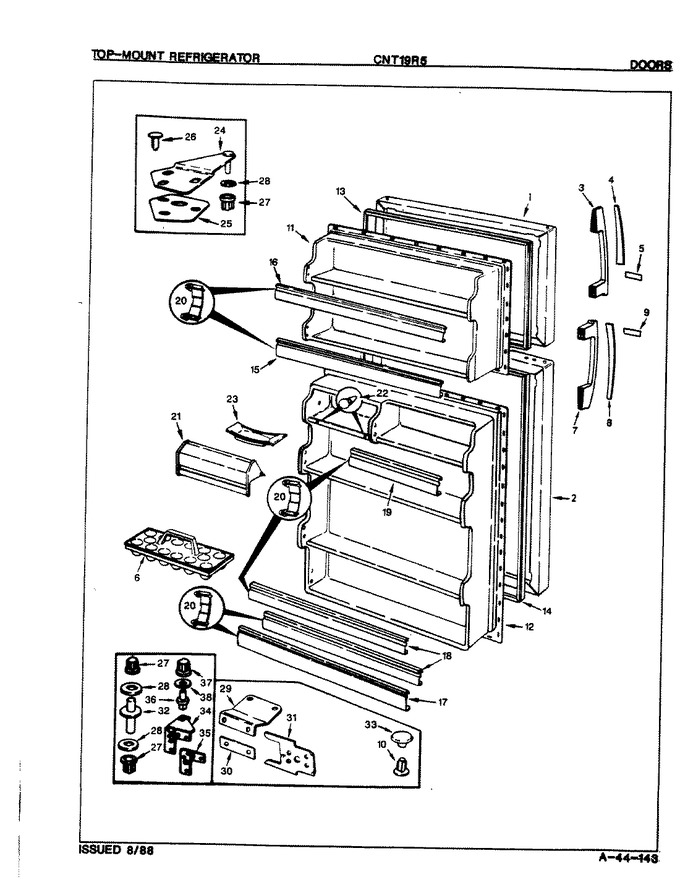

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60539-13-AM		Panel, Outer Door		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	60539-12-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	60539-12-WW		Panel, F.f. Door (wht)		Appelez-nous	-
3	59620-3		Door Handle		Appelez-nous	-
4	59256-12		Handle Trim		Appelez-nous	-
4	29458-3		P Nut		Appelez-nous	-
5	59917-2		Insert		Appelez-nous	-
6	60066-8		Tray, Egg		Appelez-nous	-
7	59620-3		Door Handle		Appelez-nous	-
8	59256-12		Handle Trim		Appelez-nous	-
9	59917-4		Insert		Appelez-nous	-
10	55782-6		Plug Button (almond)		Appelez-nous	-
11	65928-13		Liner, Door		Appelez-nous	-
12	65933-22		Liner, Door		Appelez-nous	-
12	65275-5		Screw		Appelez-nous	-
13	66199-5		Gasket, Frz. Door		Appelez-nous	-
14	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-134)				$ 129.55
16	WP61003045		Trim, Door Shelf   (Replaces: 65151-123)				$ 129.55
17	WP61003045		Trim, Door Shelf   (Replaces: 65151-146)				$ 129.55
18	WP61003045		Trim, Door Shelf   (Replaces: 65151-134)				$ 129.55
19	WP61003045		Trim, Door Shelf   (Replaces: 65151-58)				$ 129.55
20	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
21	60406-42		Door, Dairy		Appelez-nous	-
22	28272-6		Bumper, Door		Appelez-nous	-
23	29936-2		Tray, Butter		Appelez-nous	-
24	53709-18		Door Hinge, Upper		Appelez-nous	-
26	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
26	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
27	66036-1		Bushing,top/center Hinge		Appelez-nous	-
28	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
28	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
29	60031-2		Door Hinge, Center		Appelez-nous	-
30	60034-1		Spacer, Center Hinge		Appelez-nous	-
31	60622-1		Tapping Plate		Appelez-nous	-
31	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
32	60035-4		Pin, Center Hinge		Appelez-nous	-
33	56186-6		Plug Button, (almond)		Appelez-nous	-
34	60630-12		Hinge, Lower		Appelez-nous	-
34	403062-5		Screw		Appelez-nous	-
35	60626-1		Shim, Lower Hinge		Appelez-nous	-
36	53672-1		Pin, Lower Hinge		Appelez-nous	-
37	66034-1		Bushing, Lower Hinge				$ 19.76
38	54233-2		Washer		Appelez-nous	-
