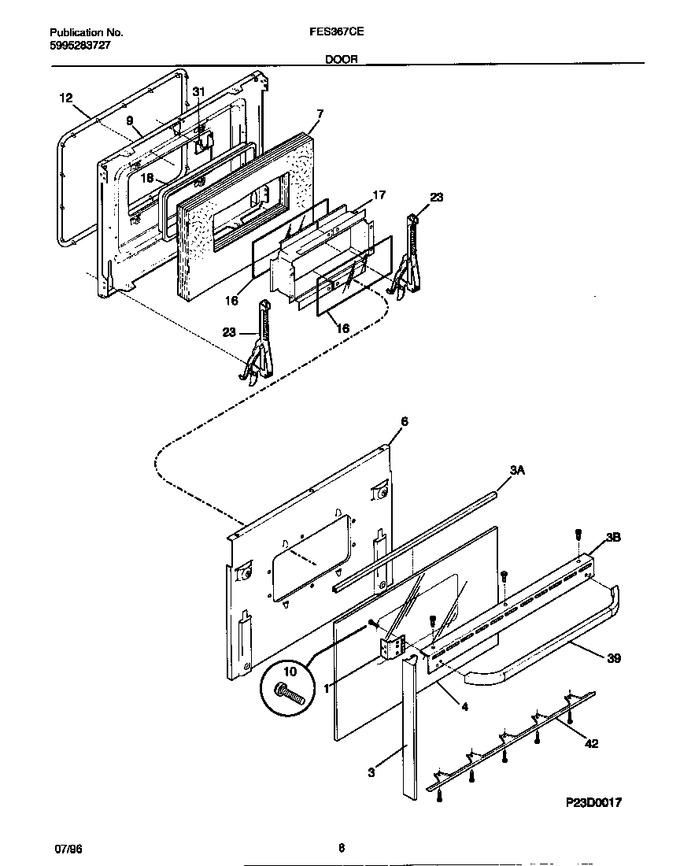

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim, Handle, (2)				$ 52.87
3	318028900		Trim-oven Door				$ 34.82
3	5303311200		Trim,oven Door ,black ,lower		Appelez-nous	-
3	318049205		Trim-oven Door, Black, Side		Appelez-nous	-
4	318041104		Glass-oven Door, Black, Outer		Appelez-nous	-
6	318056810		Shield-wool		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
16	318041603		Glass-oven Door,inner ,(2)				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
23	318024700		Hinge		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	318040400		Handle-door, Black, Oven		Appelez-nous	-
42	318049001		Trim-oven Door, Black		Appelez-nous	-
*02378	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
*02379	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*02380	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
9A	318048800		Liner-oven Door		Appelez-nous	-
9B	5308007939		Plug, Door Liner (not Illustrated)		Appelez-nous	-
