SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body

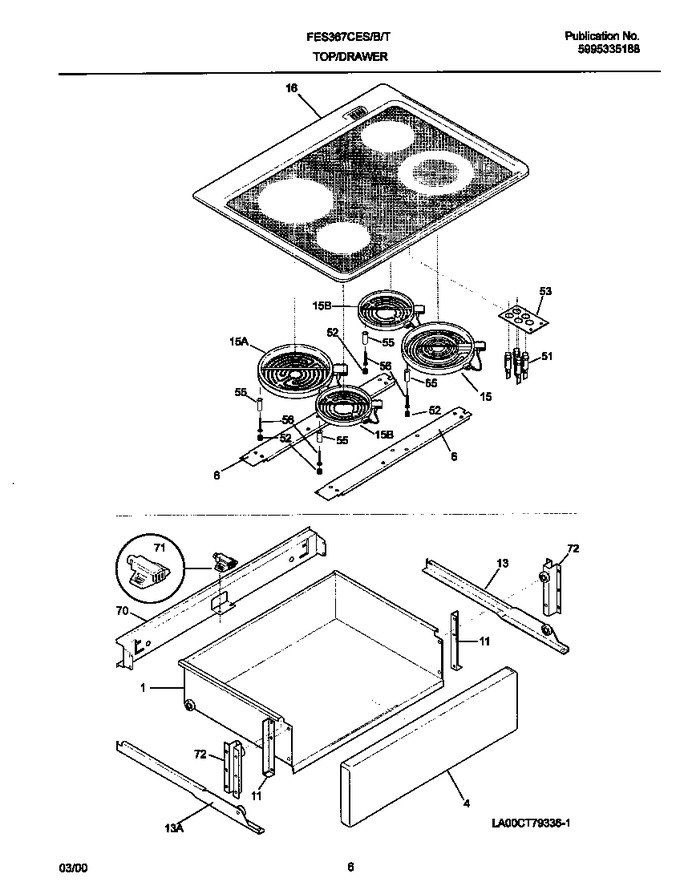

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
2	318108000		Liner, Drawer		Appelez-nous	-
4	5303311178		Panel-drawer, Black		Appelez-nous	-
6	5303311190		Support-element		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
13	5303311130		Channel,drawer ,lh		Appelez-nous	-
15	903118-9010		Element-surface,radiant ,2100w ,2100w ,large   (Replaces: 318178101)			Immediately	$ 236.18
15	318178002		Element-surface,dual ,6/9 Inches ,1000/2000w		Appelez-nous	-
15	318198817		Element-surface,radiant ,small/6 Inch ,1200w,1200w ,smal   (Replaces: 318178100)			Immediately	$ 192.78
16	318079522		Main Top,glass ,black		Appelez-nous	-
51	5303297484		Light-indicator, Hot Surface		Appelez-nous	-
52	5303317177		Spring-element Mtg				$ 12.74
53	318125910		Bracket-indicator Light,hot Surface		Appelez-nous	-
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
*51504	3201899		Washer,hinge Assy		Appelez-nous	-
*51505	08002868		Screw 10 X 24 X 1/2				$ 14.18
*51506	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*51507	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*51508	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*51509	5303300414		Spacer, Cork & Rubber				$ 13.18
*51511	5303325171		Washer,plastic		Appelez-nous	-
*51512	5303325174		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
