SELECT A DIAGRAM

01 - Cover

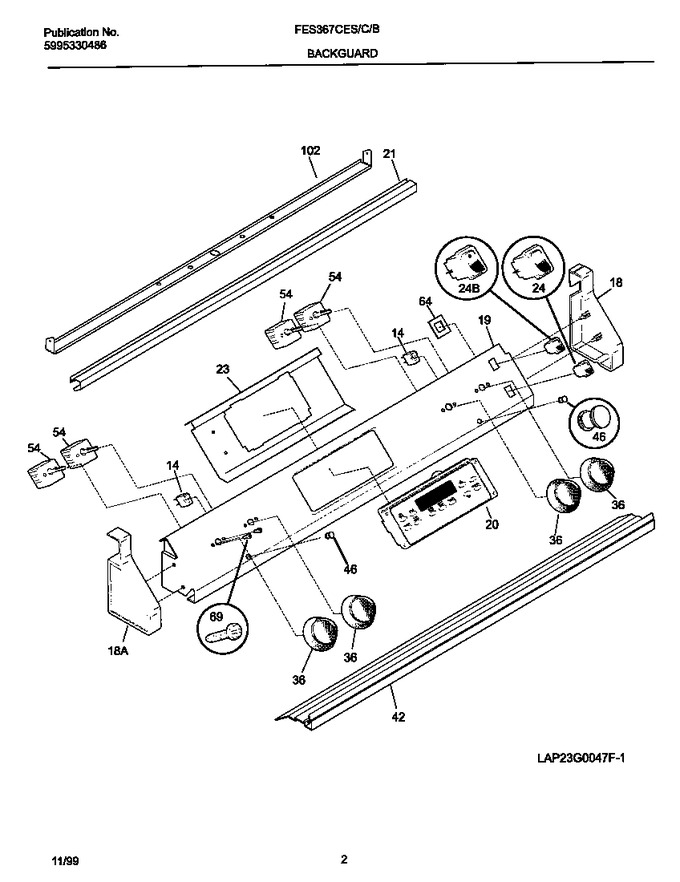

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
18	5303300161		End Cap, Black, Lh		Appelez-nous	-
19	318005511		Panel-control		Appelez-nous	-
20	318012914		Clock/timer, Electronic		Appelez-nous	-
21	318027803		Trim Backguard,top		Appelez-nous	-
23	318015020		Bracket-clock Mtg		Appelez-nous	-
24	316083100		Switch-rocker, Dual Element, Gray   (Replaces: 316086900)				$ 89.31
24	5304527841		Switch-rocker,oven Light ,blk   (Replaces: 316005612)			Immediately	$ 11.38
36	318164502		Knob,temp Control ,gray				$ 29.77
42	318106927		Trim,backguard ,black ,bottom				$ 188.06
46	318044511		Lens-indicator Light   (Replaces: 318044510)			Immediately	$ 25.66
54	318120501		Switch-surface Unit, (4)				$ 244.13
64	318112200		Mtg Rocker Switch		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
102	318055601		Bracket-mounting				$ 34.13
*15040	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*15041	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*15042	5303323145		Nut		Appelez-nous	-
*15043	08002868		Screw 10 X 24 X 1/2				$ 14.18
*15044	5303311124		Screw,(4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
