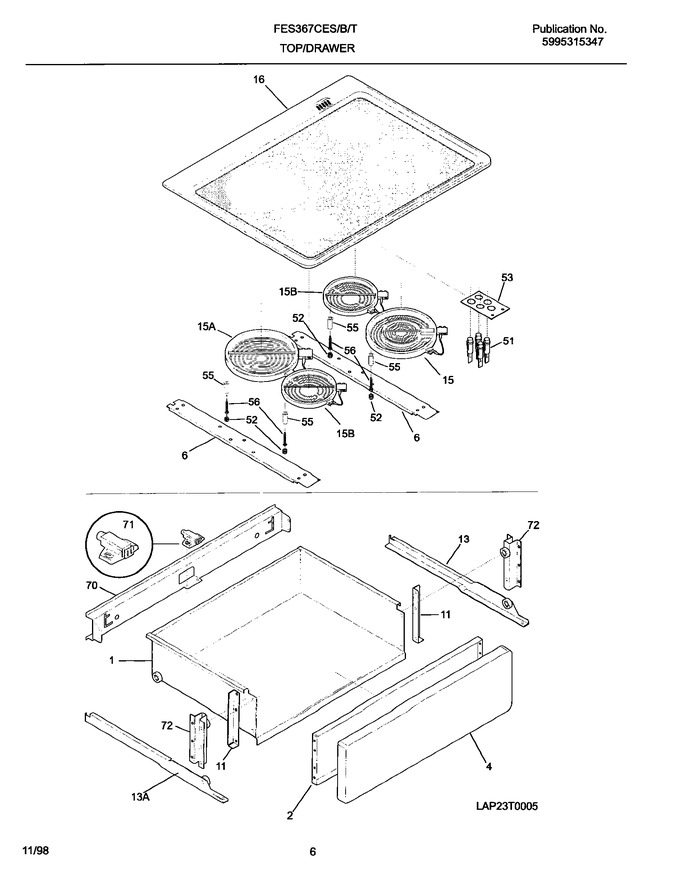

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
2	318108000		Liner, Drawer		Appelez-nous	-
4	5303311126		Panel-drawer		Appelez-nous	-
6	5303311190		Support-element		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
16	318079501		Main Top, White		Appelez-nous	-
52	5303317177		Spring-element Mtg				$ 12.74
53	318125910		Bracket-indicator Light,hot Surface		Appelez-nous	-
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
13A	5303311130		Channel,drawer ,lh		Appelez-nous	-
F15	318178002		Element-surface,1000/2000w		Appelez-nous	-
F15A	903118-9010		Element-surface,1200w   (Replaces: 318178101)			Immediately	$ 236.18
F15B	318198817		Element-surface,1200w   (Replaces: 318178100)			Immediately	$ 192.78
F51	5303297484		Light-indicator		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
