SELECT A DIAGRAM

01 - Cover

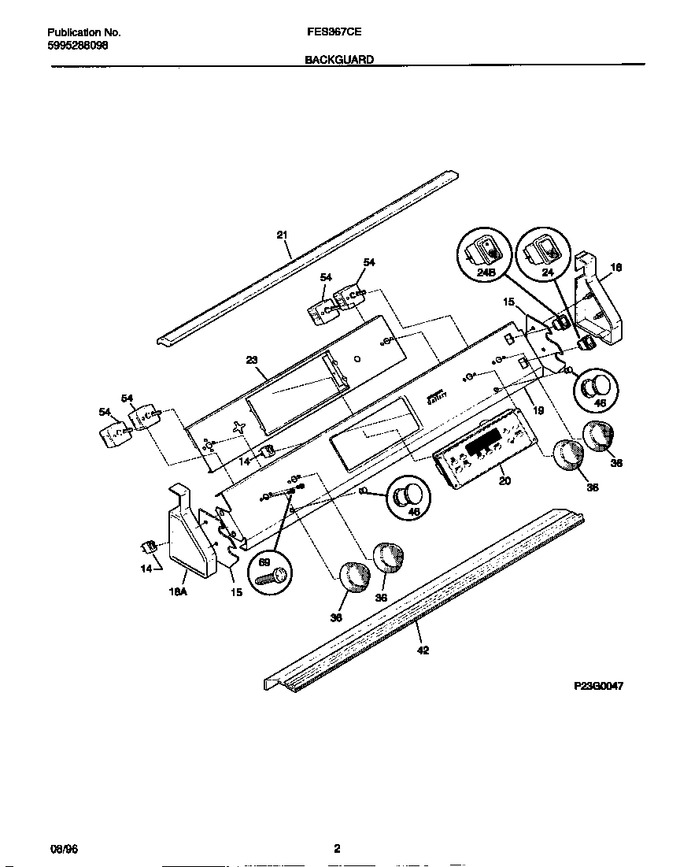

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303304669		End Cap, Almond, Rh		Appelez-nous	-
18	5303304672		End Cap, Almond, Lh		Appelez-nous	-
19	318005510		Panel-control		Appelez-nous	-
20	318012913		Clock/timer, Electronic		Appelez-nous	-
21	318027802		Trim-backguard, Top		Appelez-nous	-
24	316005608		Switch-rocker, Almond, Oven Light		Appelez-nous	-
24	316076302		Switch-rocker, Almond, Dual Element		Appelez-nous	-
36	318016304		Knob-surface Unit, Almond, (3)		Appelez-nous	-
42	318106902		Trim-vent, Almond		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
54	318120501		Switch-surface Unit				$ 244.13
69	5303323137		Screw, Switch Mtg   (Replaces: 5303305528)				$ 11.88
*60800	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*60801	5303304692		Plate, Backup, Light Switch		Appelez-nous	-
*60802	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
23A	318015000		Bracket-clock Mtg		Appelez-nous	-
23B	318015501		Bracket-clock Mtg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
