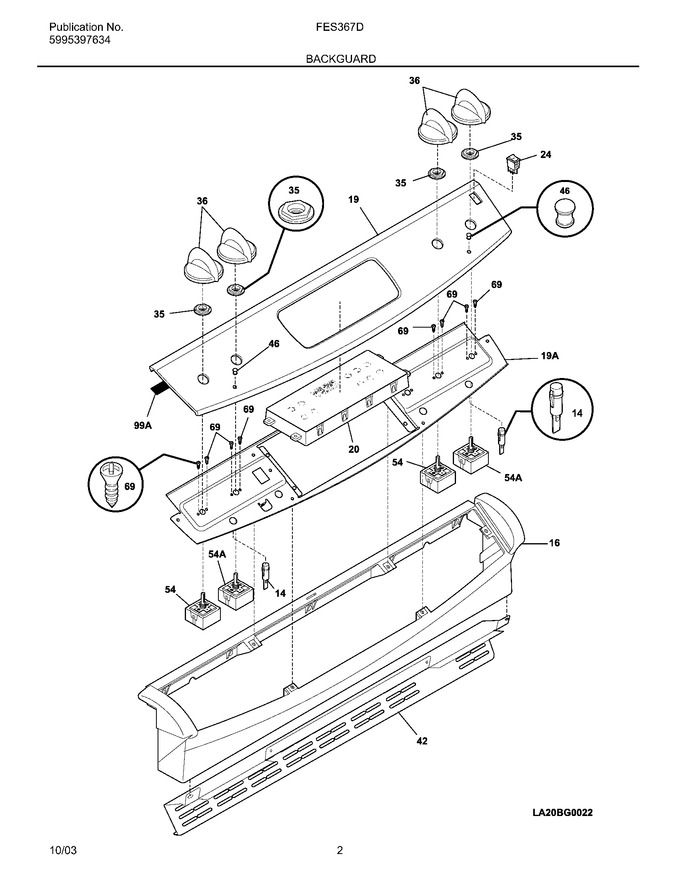

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318235001		Console,assy. ,black ,w/ End Caps		Appelez-nous	-
19	318235145		Panel,control ,black		Appelez-nous	-
35	318233700		Retainer,control Panel ,black		Appelez-nous	-
36	318229301		Knob,control ,black		Appelez-nous	-
42	318224301		Trim,vent ,black ,bottom		Appelez-nous	-
46	318228300		Lens,indicator Light		Appelez-nous	-
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
19A	9910999SI		Panel,control Mtg.   (Replaces: 318224401)		Appelez-nous	-
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318044831		Light,indicator ,125v ,(2)   (Replaces: 318044825)				$ 16.69
F20	318185447		Clock/timer,electronic ,black ,es300				$ 378.64
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
F54	903136-9010		Switch,surface Unit ,single   (Replaces: 318220020)			Immediately	$ 107.42
F54A	318220021		Switch,surface Unit ,large		Appelez-nous	-
NI	318183100		Support,glass ,black ,(4)				$ 9.35
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316220805		Overlay,clock ,black ,es300				$ 49.40
