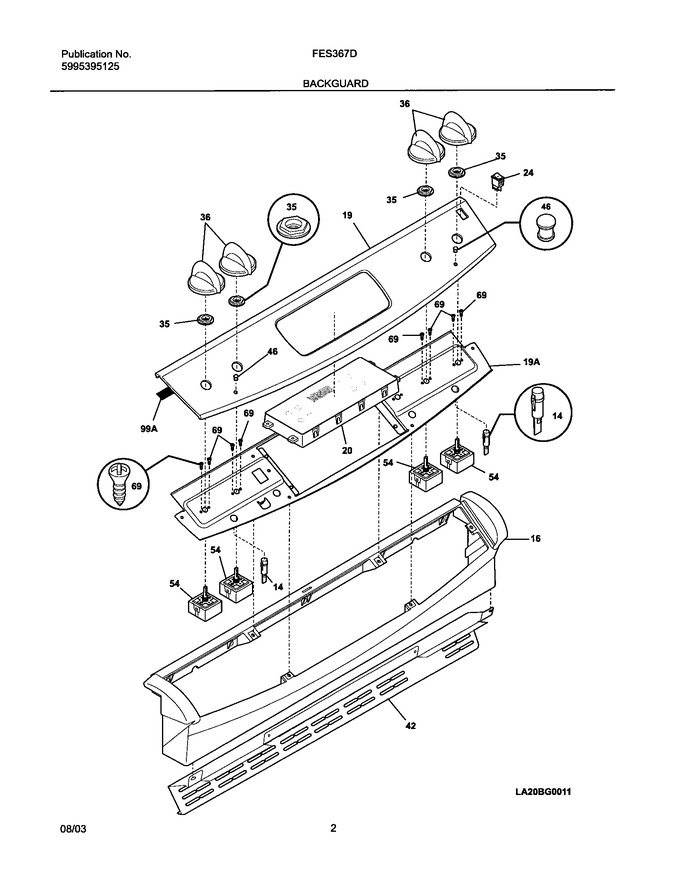

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318235002		Console,assy. ,bisque ,w/ End Caps		Appelez-nous	-
19	318235146		Panel,control ,bisque		Appelez-nous	-
35	318233702		Retainer,control Panel ,bisque		Appelez-nous	-
36	318229302		Knob,control ,bisque		Appelez-nous	-
42	318224301		Trim,vent ,black ,bottom		Appelez-nous	-
46	318228300		Lens,indicator Light		Appelez-nous	-
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
19A	9910999SI		Panel,control Mtg.   (Replaces: 318224401)		Appelez-nous	-
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318044831		Light,indicator ,125v ,(2)   (Replaces: 318044825)				$ 16.69
F20	318185448		Clock/timer,electronic ,bisque ,es300		Appelez-nous	-
F24	318037520		Switch,rocker ,bisque ,oven Light				$ 61.64
F54	318120521		Switch,surface Unit				$ 124.09
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-
NI	316220804		Overlay,clock ,bisque   (Replaces: 316220806)			Immediately	$ 42.53
NI	3201861		Screw,6 X 0.375				$ 0.76
