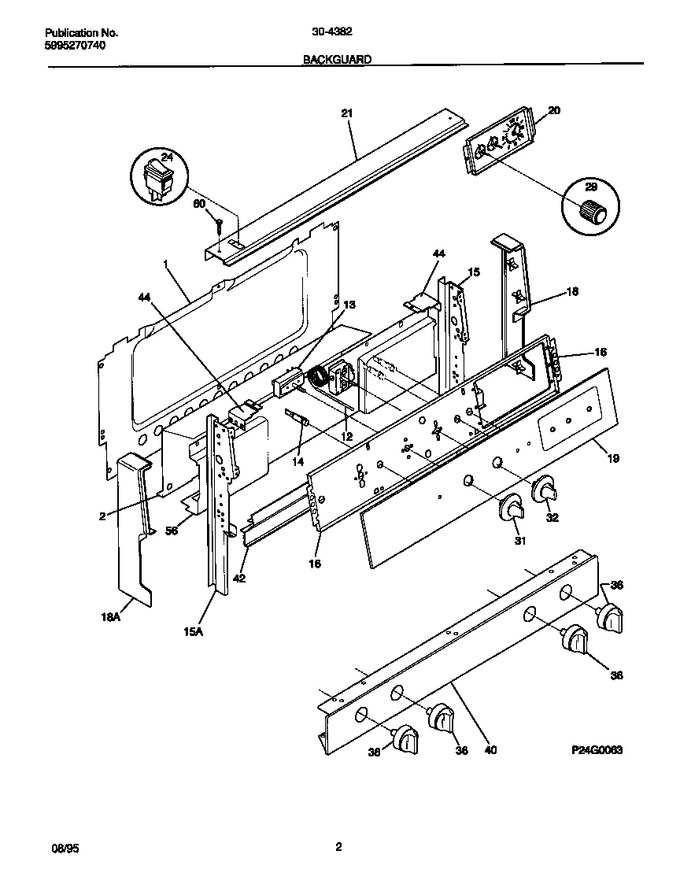

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316038801		Shield-backguard, Inner		Appelez-nous	-
12	5303271746		Thermostat-oven				$ 414.28
13	5303212678		Switch Selector		Appelez-nous	-
14	3201728		Light/lamp, Indicator, Red, Lock, 125, Lock (not Illustrated)		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
18	316021801		End Cap, Black, Lh				$ 94.29
18	316021800		End Cap, Black, Rh				$ 81.32
19	5303272836		Clip-backguard (not Illustrated)		Appelez-nous	-
19	5303272840		Panel-control, Glass		Appelez-nous	-
20	3204766		Clock/timer, Analog 3 Stem		Appelez-nous	-
21	5303283554		Trim - Canopy/shield, Black		Appelez-nous	-
24	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
29	316029000		Knob-clock		Appelez-nous	-
31	5303286099		Knob-selector		Appelez-nous	-
32	5303286098		Knob - Thermostat		Appelez-nous	-
36	316023014		Knob-control		Appelez-nous	-
40	316009242		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*14920	316001439		Harness-wiring, Backguard		Appelez-nous	-
*14921	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*14922	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
