SELECT A DIAGRAM

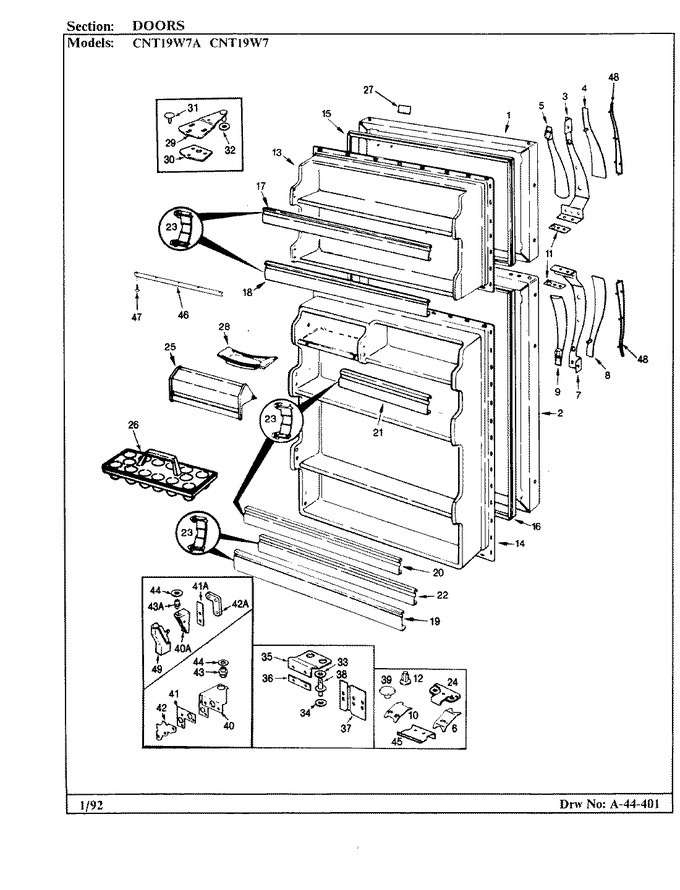

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68474-1-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	68473-1-WW		Panel, F.f. Door (wht)		Appelez-nous	-
3	66255-1		Door Handle		Appelez-nous	-
4	68036-3		Insert (wht)		Appelez-nous	-
5	60580-5		Insert		Appelez-nous	-
6	56209-3		Clip, Stop Screw		Appelez-nous	-
7	66255-2		Door Handle		Appelez-nous	-
7	9986-122		Screw		Appelez-nous	-
8	68036-3		Insert (wht)		Appelez-nous	-
9	60580-5		Insert		Appelez-nous	-
10	60123-2		Clip, Stop Screw		Appelez-nous	-
10	9986-112		Screw		Appelez-nous	-
11	68776-1		Shim Handle----na		Appelez-nous	-
12	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
13	65928-18		Liner, Door		Appelez-nous	-
14	65275-5		Screw		Appelez-nous	-
14	68887-1		Inner Panel		Appelez-nous	-
15	66199-5		Gasket, Frz. Door		Appelez-nous	-
16	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
17	WP61003045		Trim, Shelf   (Replaces: 68832-7)				$ 129.55
18	WP61003045		Shelf Trim   (Replaces: 66636-39)				$ 129.55
19	WP61003045		Shelf Trim   (Replaces: 68832-21)				$ 129.55
20	WP61003045		Shelf Trim   (Replaces: 68832-4)				$ 129.55
21	WP61003045		Trim, Shelf   (Replaces: 68832-8)				$ 129.55
22	WP61003045		Shelf Trim   (Replaces: 66636-39)				$ 129.55
23	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
24	60419-10		Door Stop		Appelez-nous	-
25	69058-2		Door, Dairy		Appelez-nous	-
26	60066-1		Tray, Egg		Appelez-nous	-
27	66982-15		Insert, Nameplate		Appelez-nous	-
28	29936-2		Tray, Butter		Appelez-nous	-
29	53709-20		Hinge, Upper		Appelez-nous	-
29	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
30	65031-1		Shim, Upper Hinge		Appelez-nous	-
31	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
32	54233-1		Washer				$ 7.71
33	57483-1		Pan, Crisper		Appelez-nous	-
34	54233-2		Washer		Appelez-nous	-
35	65275-55		Screw		Appelez-nous	-
35	68811-2		Hinge, Center		Appelez-nous	-
36	68812-1		Shim, Center Hinge		Appelez-nous	-
37	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
38	67322-1		Pin, Center Hinge		Appelez-nous	-
39	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
40	67714-6		Hinge, Lower		Appelez-nous	-
40	403100-1		Screw		Appelez-nous	-
41	60626-1		Shim, Lower Hinge		Appelez-nous	-
42	65790-3		Tapping Plate		Appelez-nous	-
42	403100-1		Screw		Appelez-nous	-
43	68788-1		Hinge Pin		Appelez-nous	-
45	9986-108		Screw		Appelez-nous	-
45	60030-1		Door Stop		Appelez-nous	-
46	68544-2		Gasket, Secondary		Appelez-nous	-
47	56686-5		Clip, Secondary Seal		Appelez-nous	-
48	68048-4		Insert, Vinyl		Appelez-nous	-
