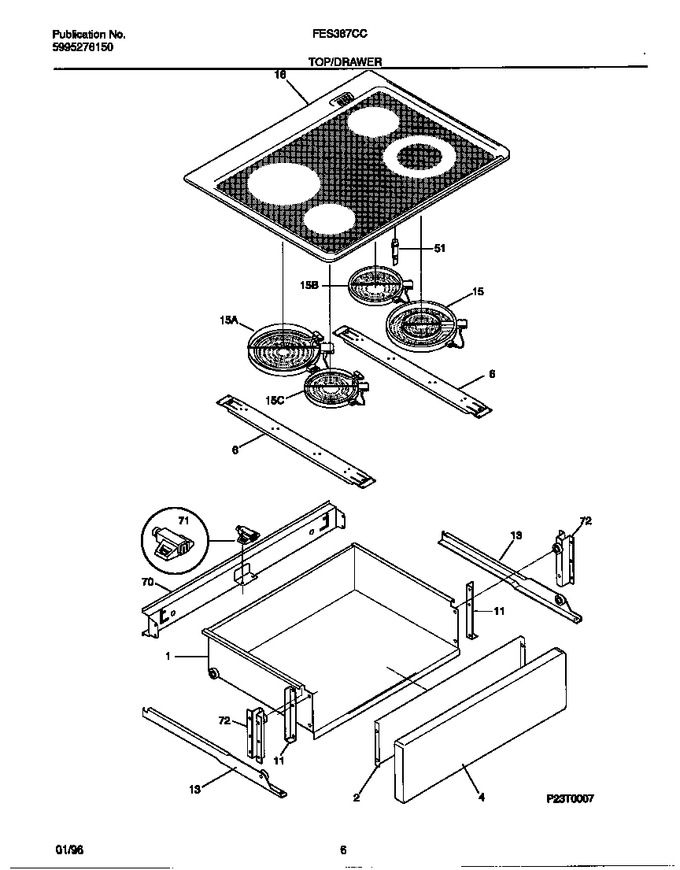

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
2	318108000		Liner, Drawer		Appelez-nous	-
4	5303311126		Panel-drawer		Appelez-nous	-
6	5303311190		Support-element		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
13	5303311130		Channel,drawer ,lh		Appelez-nous	-
15	318050401		Element-surface, 2200w, Rr		Appelez-nous	-
15	318198817		Element-surface, 1200w   (Replaces: 318050402)			Immediately	$ 192.78
15	318050407		Element-surface, 2000/1000w		Appelez-nous	-
15	318050400		Element-surface, 1200w, Small, Lr		Appelez-nous	-
16	318079500		Main Top, Glass, White		Appelez-nous	-
51	5303297484		Light-indicator		Appelez-nous	-
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
