SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Body

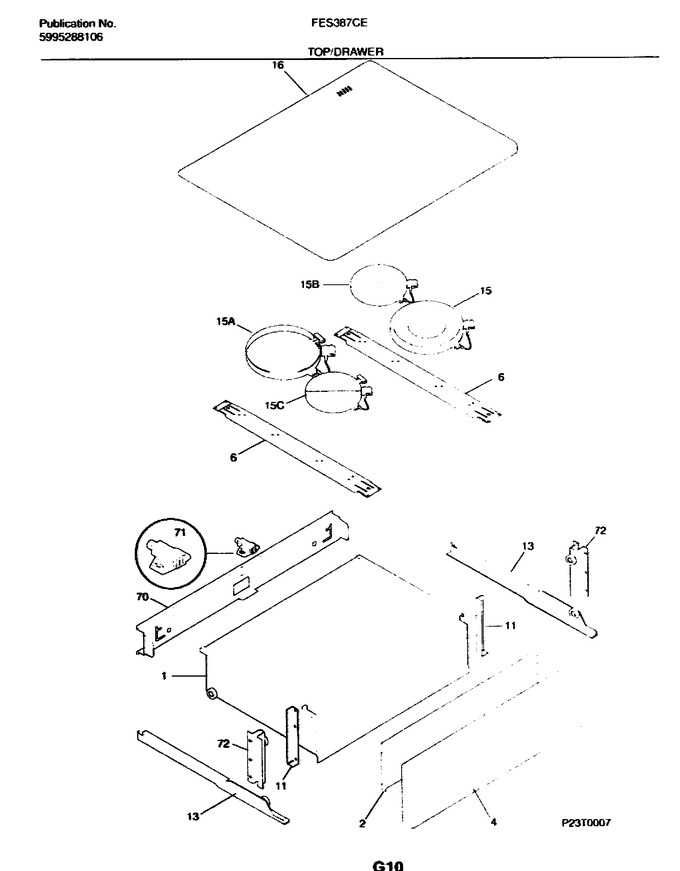

07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505701 | Drawer-utility (Replaces: 5303310500) |
|
Immediately | $ 143.39 | ||||
| 2 | 318108000 | Liner, Drawer |
|
- | |||||
| 4 | 5303311126 | Panel-drawer |
|
- | |||||
| 6 | 5303311190 | Support-element |
|
- | |||||
| 11 | 5303311125 | Bracket,drawer |
|
- | |||||
| 13 | 5303311130 | Channel,drawer ,lh |
|
- | |||||
| 13 | 5303311129 | Channel,drawer ,rh |
|
- | |||||
| 16 | 318079500 | Main Top, Glass, White |
|
- | |||||
| 70 | 5303311143 | Bracket-slide |
|
- | |||||
| 71 | 5303311144 | Magnet & Spring Assy |
|
- | |||||
| 72 | 5303311145 | Bracket & Wheel Assy |
|
- | |||||
| F15 | 318050407 | Element-surface, 2000/1000w |
|
- | |||||
| F15A | 5303297142 | Element-surface, Halogen, Small/6 Inch, W/limit Switch |
|
- | |||||
| F15B | 318198817 | Element-surface, 1200w (Replaces: 318050402) |
|
Immediately | $ 192.78 | ||||
| F15C | 5303297143 | Element-surface, Halogen, Large/8 Inch, W/limit Switch |
|
- |
