SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body

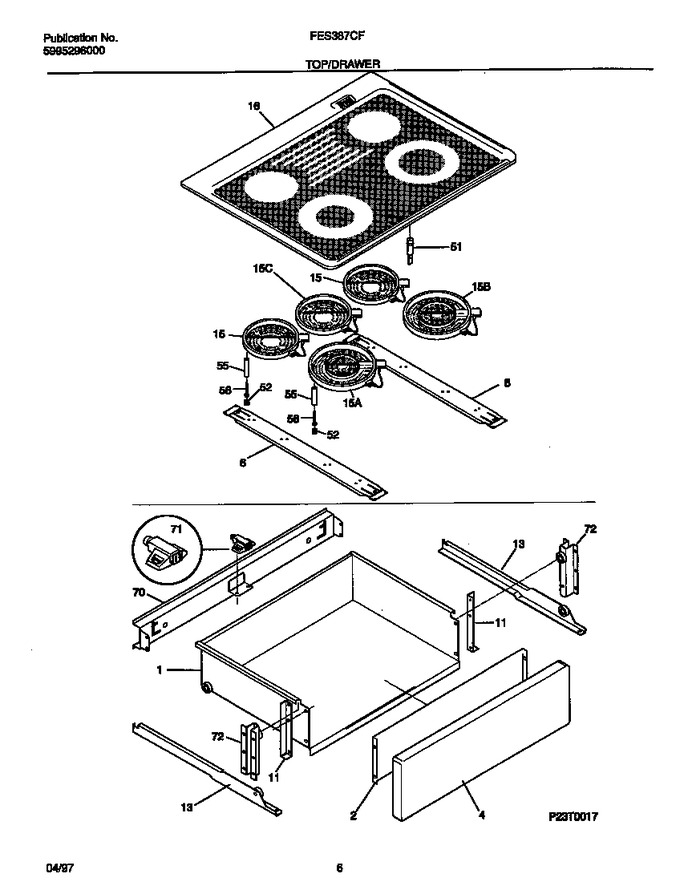

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
2	318108000		Liner, Drawer		Appelez-nous	-
4	5303311178		Panel-drawer, Black		Appelez-nous	-
6	318111100		Support-element, (2)		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
15	389082702		Element-surface, Radiant, Dual, 2100w/1000w, Limit Sw In   (Replaces: 316049703)				$ 284.39
15	316049702		Element-surface, Dual, 9``, 2100w/700w, Limit Sw. Incl.		Appelez-nous	-
15	316098200		Element-warmer, 120v/100w		Appelez-nous	-
15	318198817		Element-surface, Radiant, Small/6 Inch, 1200w, (2), Limi   (Replaces: 316010203)			Immediately	$ 192.78
16	318079506		Main Top, Glass, Black				$ 626.59
51	5303297484		Light-indicator, Hot Surface, (4)		Appelez-nous	-
52	5303317177		Spring-element Mtg				$ 12.74
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
*42733	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*42734	318125900		Bracket-indicator Light, Hot Surface		Appelez-nous	-
*42735	5303300414		Spacer, Cork & Rubber				$ 13.18
*42736	5303324497		Roller-nylon		Appelez-nous	-
*42737	5303325174		Cap-screw		Appelez-nous	-
13A	5303311129		Channel,drawer ,rh		Appelez-nous	-
13B	5303311130		Channel,drawer ,lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
