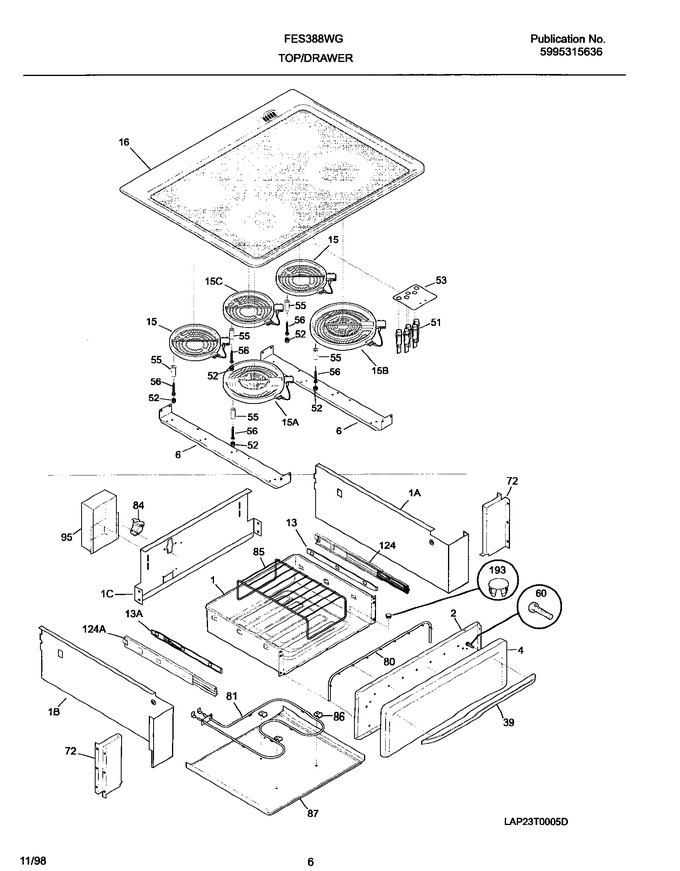

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
2	318108011		Liner, Drawer		Appelez-nous	-
4	318107900		Panel-drawer, White		Appelez-nous	-
6	318111100		Support-element, (2)		Appelez-nous	-
13	316094900		Rail,drawer ,rh Outer		Appelez-nous	-
16	318079506		Main Top, Glass, Black				$ 626.59
39	316079500		Handle-drawer, White				$ 289.70
52	5303317177		Spring-element Mtg				$ 12.74
53	318125900		Bracket-indicator		Appelez-nous	-
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element				$ 2.42
60	240442708		Screw Handle 10-32 X 1-1/8   (Replaces: 5304400794)				$ 8.34
72	318113401		Bracket-slide		Appelez-nous	-
80	318052700		Seal,door ,warmer Drawer		Appelez-nous	-
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip-hold Down				$ 9.93
87	318121501		Base-warmer		Appelez-nous	-
95	318143701		Cover-wire		Appelez-nous	-
124	316096500		Channel,drawer ,rh,inner		Appelez-nous	-
193	5304400796		Plug		Appelez-nous	-
124A	316096501		Channel Drawer,lh,inner		Appelez-nous	-
13A	316094901		Rail-drawer,lh,outer		Appelez-nous	-
1A	318143307		Deflector-warmer,side,rh		Appelez-nous	-
1B	318143306		Deflector-warmer,side,lh		Appelez-nous	-
1C	318143201		Deflector-warmer,rear		Appelez-nous	-
F15	318198817		Element-surface,1200w   (Replaces: 318178100)			Immediately	$ 192.78
F15A	318178000		Element-surface, 700/2100w		Appelez-nous	-
F15B	389082702		Element Surface 1000/2100w   (Replaces: 318178001)				$ 284.39
F15C	318178103		Element-warmer/120w		Appelez-nous	-
F51	5303297484		Light-indicator		Appelez-nous	-
F81	316093100		Element, Warmer Drawer		Appelez-nous	-
F84	318005101		Thermostat		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
