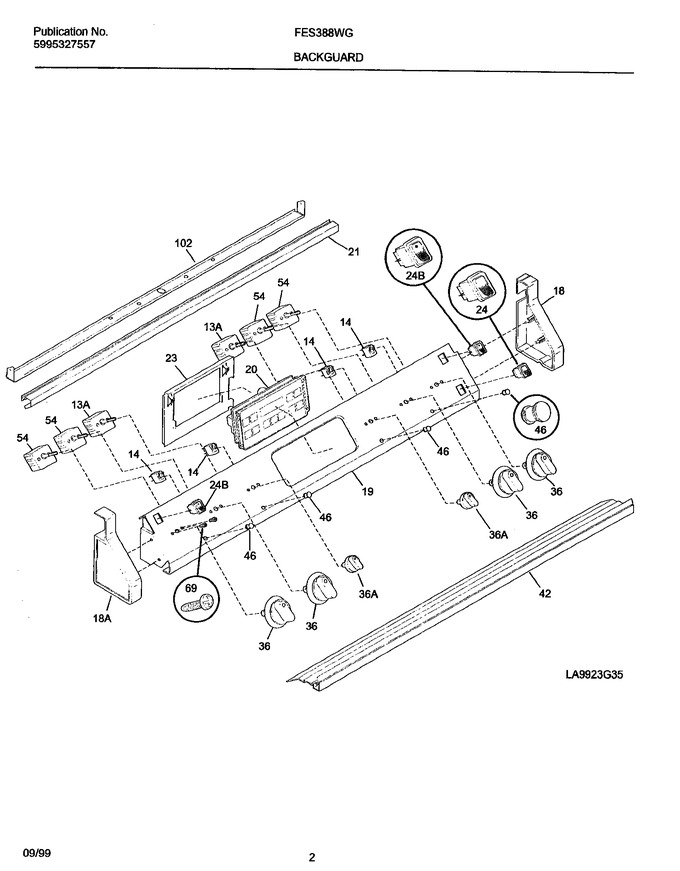

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
19	318005555		Panel-control		Appelez-nous	-
21	318027803		Trim-backguard		Appelez-nous	-
23	318015508		Bracket-timer		Appelez-nous	-
36	318099202		Knob,control				$ 156.24
42	318106903		Trim-vent		Appelez-nous	-
46	5308006417		Lens-light / Lamp, Indicator				$ 19.06
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
102	318055601		Bracket-mounting				$ 34.13
13A	5304508926		Switch-warmer, Infinite   (Replaces: 316095500)			Immediately	$ 84.18
18A	5303300161		End Cap, Black, Lh		Appelez-nous	-
36A	318017600		Knob-warmer				$ 30.14
F20	318012903		Clock/timer,electronic		Appelez-nous	-
F24	5304527841		Switch-rocker   (Replaces: 316005602)			Immediately	$ 11.38
F24B	316083100		Switch-rocker   (Replaces: 316086903)				$ 89.31
F54	5303935086		Switch-surface Unit   (Replaces: 318120503)			Immediately	$ 51.95
NI	3205110		Clip,plate Connector		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,8-18 X 3/8		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	5303323145		Nut		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
