SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer

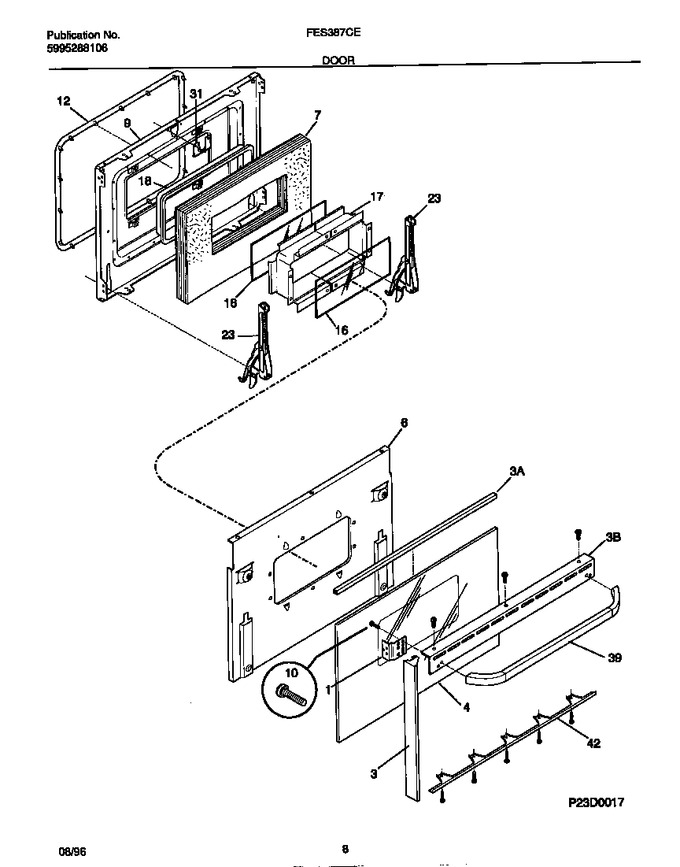

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim, Handle, (2)				$ 52.87
3	318028900		Trim-oven Door				$ 34.82
3	318049206		Trim-oven Door, White, Side, (2)		Appelez-nous	-
3	5303311194		Trim,oven Door ,white ,lower		Appelez-nous	-
4	318041102		Glass-oven Door, White, Outer				$ 227.48
6	318056810		Shield-wool		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
9	318048800		Liner-oven Door		Appelez-nous	-
10	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
16	318041603		Glass-oven Door,inner ,(2)				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
23	318024700		Hinge		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	318014301		Spacer-handle, White, (2) (not Illustrated)				$ 48.88
39	316091119		Handle-door, White, Oven		Appelez-nous	-
39	316270201		Handle-door, White, Oven   (Replaces: 5303311172)			Immediately	$ 128.29
42	318049020		Trim-oven Door				$ 156.82
42	318049002		Trim-oven Door, White, Upper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
