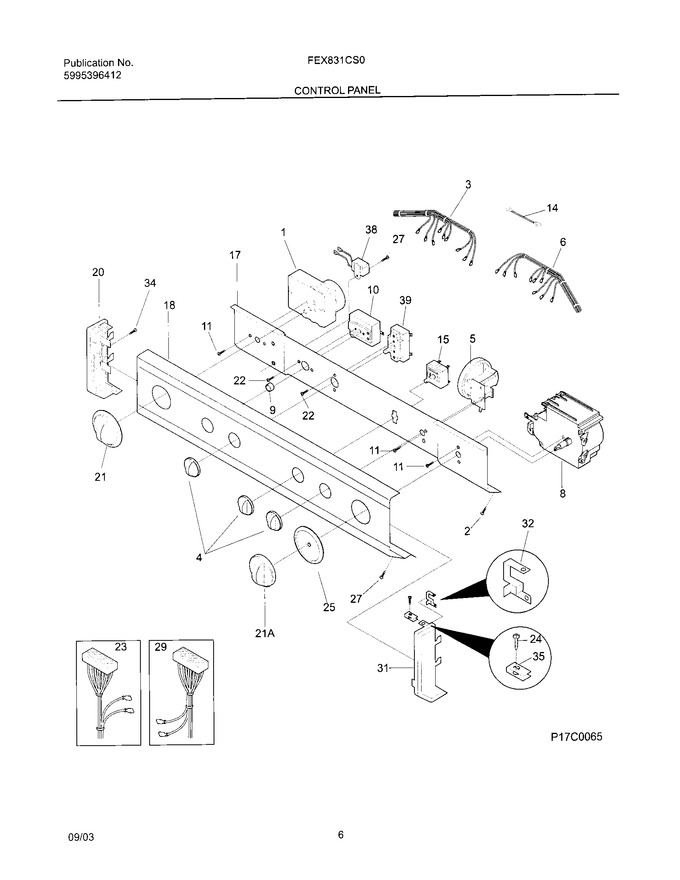

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	131873401		Knob,rotary ,white/dk Gray   (Replaces: 131873404)				$ 49.73
5	134422700		Switch,pressure ,3 Position ,1/2 Hp   (Replaces: 131692100)			Immediately	$ 98.06
9	131111501		Button,start Switch ,white ,push Type				$ 13.79
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	131983410		Bracket-control Mtg		Appelez-nous	-
18	134310300		Panel,trimplate ,console Front		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	131873304		Knob,dryer Timer ,white			Immediately	$ 59.54
22	131311700		Screw,pan Head Quad ,8-32 X 0.15		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131976804		Indicator,timer Pointer ,white/dark Gray,washer				$ 36.33
27	131892100		Screw,6-20b X 0.230		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
35	5308014350		Clip,end Cap Mtg ,u-type		Appelez-nous	-
21A	131977201		Knob,washer Timer ,white				$ 70.85
F1	5303297177		Timer - Dryer				$ 229.64
F10	131628900		Switch-push Start				$ 55.80
F14	3205243		Resistor,power ,4.4 Kilohm ,with Terminal		Appelez-nous	-
F15	131620800		Switch,temp Selector ,3 Posn Rotary		Appelez-nous	-
F23	134119400		Wiring Harness,main				$ 280.25
F29	134113400		Wiring Harness,washer ,lower		Appelez-nous	-
F3	134066000		Wiring Harness,dryer Control				$ 266.12
F38	5303286537		Buzzer				$ 93.61
F39	134045300		Switch,dryer Temp ,2 Posn Rotary		Appelez-nous	-
F6	134122200		Wiring Harness,washer Control ,w/temp Switch		Appelez-nous	-
F8	131758600		Timer-washer			Immediately	$ 352.01
NI	5304464772		Strap,plastic   (Replaces: 5303161300)				$ 10.63
NI	5303208586		Screw,terminal Block ,(3)		Appelez-nous	-
NI	134101400		Terminal Block,main   (Replaces: 5303937016)			Immediately	$ 55.99
