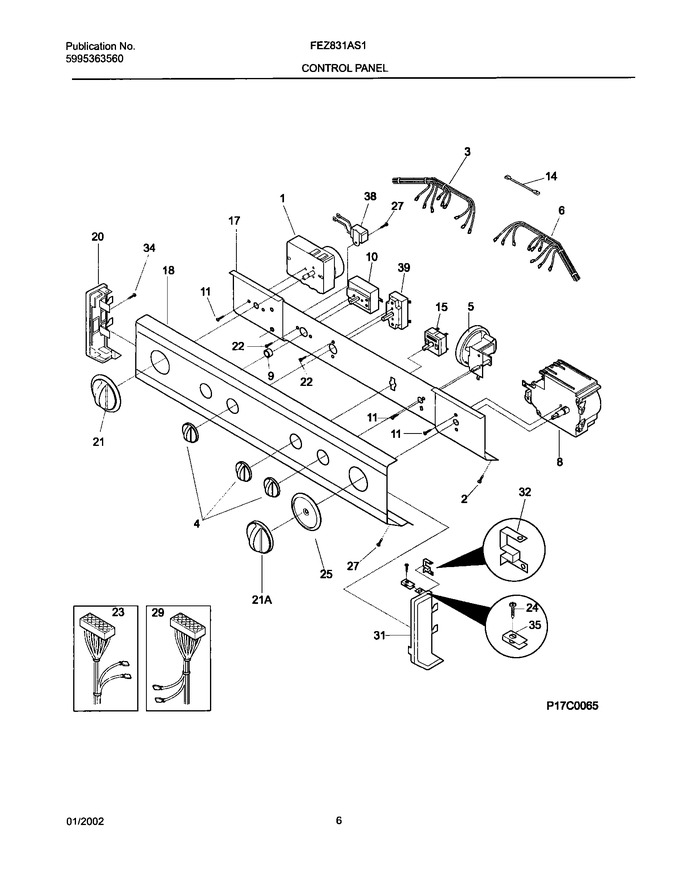

07 - Control Panel


09 - Wshr Cab,top


11 - Wshr Mtr,hose


13 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	134066000		Harn-cont-lcd Wpj Elec Pts				$ 266.12
4	131873401		Knob-rotary   (Replaces: 131873404)				$ 49.73
5	131827400		Switch-pressure		Appelez-nous	-
6	134122200		Harn-wshr-cont-w/temp Sw		Appelez-nous	-
8	131758600		Timer-washer			Immediately	$ 352.01
9	131111501		Button-start Switch,white				$ 13.79
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
17	131983410		Bracket-control Mtg		Appelez-nous	-
18	134102300		Trimplate Fd/fcl/g1wpjsj				$ 178.65
20	131288101		End Cap,white ,lh				$ 53.02
21	131873304		Knob/ind Dryer Timer			Immediately	$ 59.54
22	131311700		Screw-sw Rinse, Quad Ph Unc 2a, 8-32 X .15		Appelez-nous	-
23	131753200		Harness-dryer Main		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131976804		Pointer-wht/drk Gray-ind Lc G1				$ 36.33
27	131892100		Scr 6-20x.230 Pph B Pt		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
38	5303286537		Buzzer				$ 93.61
21A	131977201		Knob-wht-lc Wsh Timer G1/r1				$ 70.85
F1	5303297177		Timer - Dryer				$ 229.64
F10	131628900		Switch-push Start				$ 55.80
F15	131620800		Switch-temperature		Appelez-nous	-
F29	134113400		Harn-lwr Wshr L/c Emerson 2spd		Appelez-nous	-
F39	134045300		Switch-rot 2pos Lc		Appelez-nous	-
NI	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
