01 - Cover
03 - Upper Cabinet/drum/heater

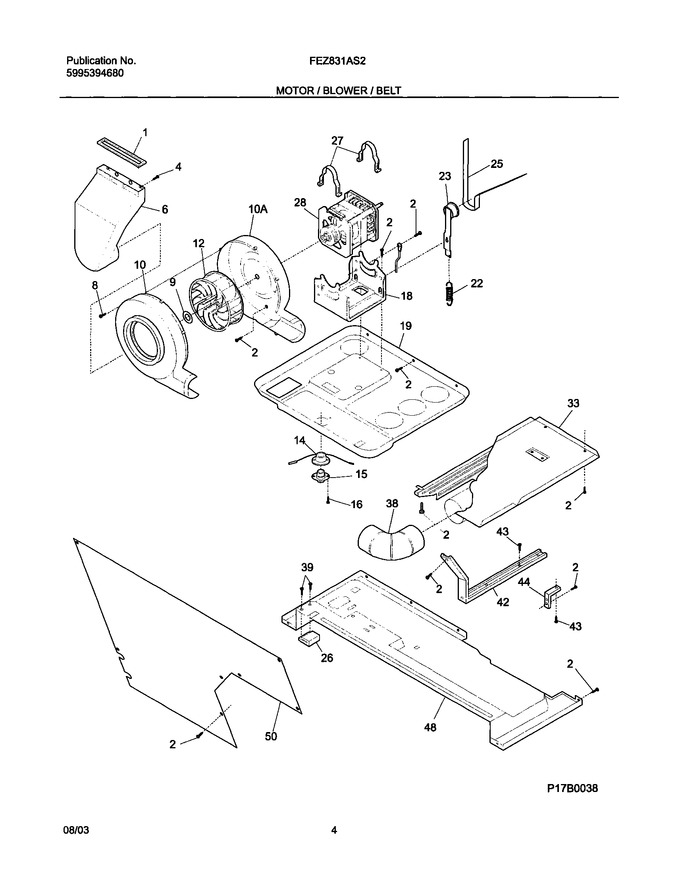

05 - Motor/blower/belt
07 - Control Panel
09 - Lower Cabinet/top
11 - Motor/tub
13 - Transmission
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131295200 | Seal-air Duct |
|
$ 16.30 | |||||
| 2 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 4 | 131362400 | Fastener,push-in |
|
$ 9.41 | |||||
| 6 | 5304521121 | Duct,air (Replaces: 134086300) |
|
$ 118.56 | |||||
| 8 | 3205245 | Screw,pan Head ,6-18ab X 0.60 |
|
- | |||||
| 9 | 5304488479 | Clamp (Replaces: 5303304824) |
|
Immediately | $ 32.09 | ||||
| 10 | 5304485558 | Housing,blower ,front ,with Seal (Replaces: 131784500) |
|
Immediately | $ 141.75 | ||||
| 12 | 131476300 | Blower Wheel |
|
Immediately | $ 47.00 | ||||
| 16 | 134178901 | Screw,quadrex Ph ,8-18ab X 0.500 (Replaces: 131311900) |
|
$ 14.89 | |||||
| 18 | 131413600 | Cradle,motor Mount ,with Idler Stud |
|
$ 104.30 | |||||
| 19 | 131363901 | Panel,motor Cradle Mt |
|
- | |||||
| 22 | 3205241 | Spring-idler |
|
$ 75.83 | |||||
| 23 | 5304507499 | Idler Arm Assy,with Pulley (Replaces: 131863100) |
|
Immediately | $ 42.66 | ||||
| 26 | 5303212870 | Block,support ,bottom Panel |
|
- | |||||
| 27 | 134242400 | Clamp,motor Mtg. |
|
Immediately | $ 35.76 | ||||
| 31 | 5304505408 | Power Cord,electric Svce ,4-wire Canada (Replaces: 5303211027) |
|
$ 194.62 | |||||
| 33 | 131731400 | Shield,access Area ,cover |
|
- | |||||
| 38 | 3204320 | Elbow,exhaust Duct |
|
- | |||||
| 39 | 131205100 | Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 42 | 3204324 | Bracket,marriage ,interior |
|
- | |||||
| 43 | 131751500 | Screw,hex Head ,12-24t 0.63 |
|
$ 9.50 | |||||
| 44 | 3204326 | Bracket,l Mounting ,cabinet Rear ,external |
|
$ 43.24 | |||||
| 48 | 131731300 | Panel,dryer ,bottom Rear |
|
- | |||||
| 50 | 3204329 | Cover,safety ,lower Front |
|
$ 40.16 | |||||
| 10A | 5304485558 | Housing,blower ,rear (Replaces: 134145100) |
|
Immediately | $ 141.75 | ||||
| F14 | 131658100 | Thermostat-heater |
|
$ 87.62 | |||||
| F15 | 3204307 | Thermostat-control |
|
$ 136.79 | |||||
| F25 | 137292700 | Belt,dryer Drive (Replaces: 134163500) |
|
Immediately | $ 9.34 | ||||
| F28 | 8581341966035 | Motor,dryer Drive ,with Pulley (Replaces: 134196600) |
|
Immediately | $ 142.51 |
