SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment

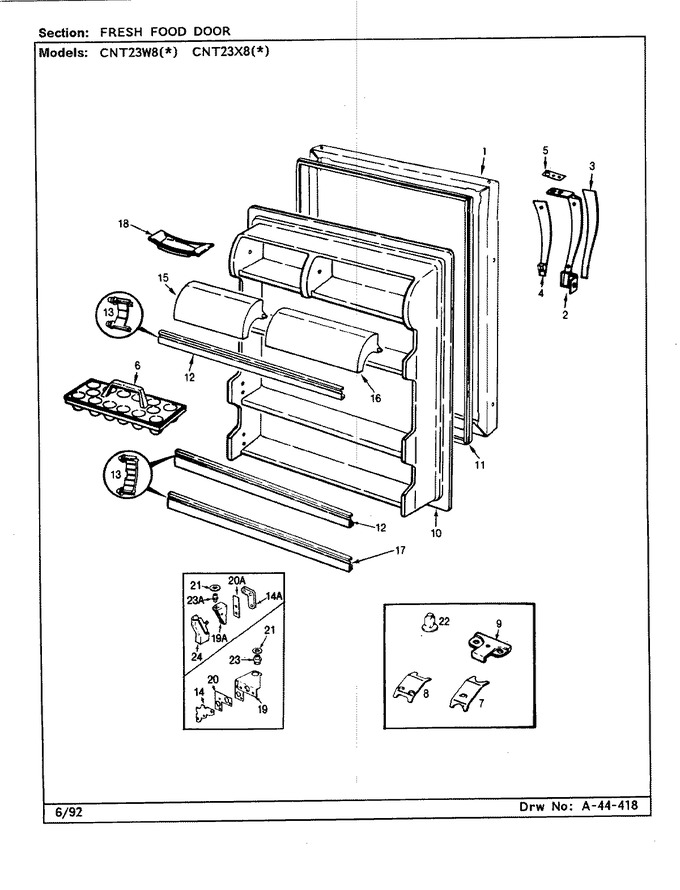

04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
1	68475-6-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	65275-57		Screw		Appelez-nous	-
2	66255-2		Door Handle		Appelez-nous	-
3	60451-8		Insert		Appelez-nous	-
4	65275-53		Screw		Appelez-nous	-
4	60580-3		Insert		Appelez-nous	-
5	68776-1		Shim Handle----na		Appelez-nous	-
6	60066-14		Tray, Egg		Appelez-nous	-
7	56209-3		Clip, Stop Screw		Appelez-nous	-
8	60123-2		Clip, Stop Screw		Appelez-nous	-
9	65275-48		Screw		Appelez-nous	-
9	68987-1		Stop, Door		Appelez-nous	-
10	69059-1		Liner, F.f. Door		Appelez-nous	-
10	65275-5		Screw		Appelez-nous	-
11	66199-20		Gasket, Door		Appelez-nous	-
12	65151-343		Trim, Door Shelf		Appelez-nous	-
13	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
14	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
14	65275-59		Screw		Appelez-nous	-
15	66184-472		Door, Dairy		Appelez-nous	-
16	66184-470		Door, Dairy		Appelez-nous	-
17	WP61003045		Trim, Door Shelf   (Replaces: 65151-341)				$ 129.55
18	29936-2		Tray, Butter		Appelez-nous	-
19	68975-2		Hinge, Lower		Appelez-nous	-
19	65275-51		Screw, Lower Hinge		Appelez-nous	-
20	69031-3		Shim		Appelez-nous	-
21	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
22	55782-6		Plug Button (almond)		Appelez-nous	-
23	68977-1		Pin, Hinge		Appelez-nous	-
24	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
