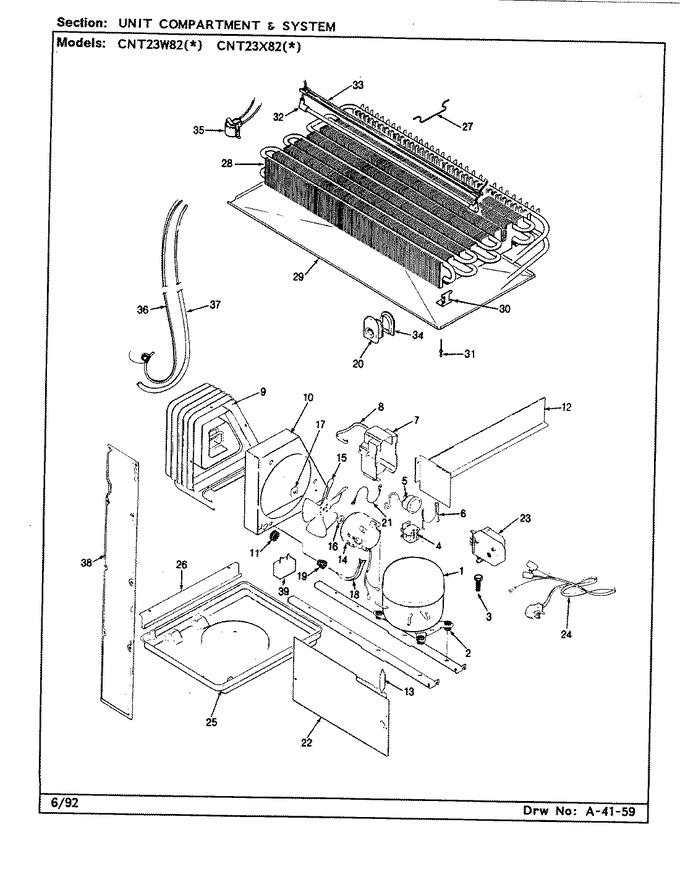

06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RA1031 | Compressor |
|
- | |||||
| 2 | 17245-4 | Grommet, Compressor |
|
- | |||||
| 3 | WP681414 | Screw, Compressor Rail (Replaces: 414011-1) |
|
Immediately | $ 7.07 | ||||
| 3 | 65275-9 | Screw, Compressor Mounting |
|
- | |||||
| 4 | 66588-4 | Relay, Start |
|
- | |||||
| 5 | 63294-21 | Overload |
|
- | |||||
| 6 | 65887-1 | Clip, Overload |
|
- | |||||
| 7 | 66589-1 | Cover, Terminal |
|
- | |||||
| 8 | 65886-1 | Clip, Terminal Cover |
|
- | |||||
| 9 | RA43871-1 | Condenser |
|
- | |||||
| 9 | 60408-1 | U-nut, Condenser |
|
- | |||||
| 10 | 66228-1 | Shroud, Condenser |
|
- | |||||
| 11 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 11 | 53351-1 | Grommet, Condenser Tubing |
|
- | |||||
| 12 | 66493-3 | Baffle |
|
- | |||||
| 13 | WPW10143759 | Drier (Replaces: 13900) |
|
Immediately | $ 27.70 | ||||
| 14 | 68481-6 | Motor, Condenser Fan |
|
- | |||||
| 14 | 65275-33 | Screw |
|
- | |||||
| 15 | WP12587601 | Blade, Condenser Fan (Replaces: 60485-1) |
|
$ 114.00 | |||||
| 16 | 19913-4 | Washer |
|
- | |||||
| 17 | WP486692 | Clip (Replaces: 19914-0) |
|
$ 7.04 | |||||
| 18 | 66225-1 | Bracket, Fan Motor |
|
- | |||||
| 19 | 56933-1 | Grommet, Bracket |
|
- | |||||
| 20 | 60068-1 | Grommet, Tube Entry |
|
- | |||||
| 21 | 29675-3 | Ground Wire |
|
- | |||||
| 22 | WP488729 | Screw (Replaces: 9986-45) |
|
Immediately | $ 7.01 | ||||
| 22 | 66338-2 | Cover, Unit Compartment |
|
- | |||||
| 23 | 405007-1 | Screw |
|
- | |||||
| 23 | 54113-12 | Automatic Timer |
|
- | |||||
| 24 | 52890-2 | Cord, Power |
|
- | |||||
| 25 | 68236-1 | Pan, Drain |
|
$ 89.75 | |||||
| 26 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 26 | 60555-2 | Rail, Drain Pan (lt) |
|
- | |||||
| 26 | 60555-1 | Rail, Drain Pan (rt) |
|
- | |||||
| 27 | 60263-1 | Clip, Defrost Heater |
|
- | |||||
| 28 | RA43620-12 | Evaporator |
|
- | |||||
| 29 | 60101-9 | Tray, Drip |
|
- | |||||
| 30 | 60108-1 | Bracket, Coil To Tray |
|
- | |||||
| 31 | WP210720 | Rivet (Replaces: 26397-9) |
|
$ 12.14 | |||||
| 32 | 60106-39 | Heater, Defrost |
|
- | |||||
| 33 | 60109-6 | Shield, Defrost Heater |
|
- | |||||
| 34 | 60069-1 | Retainer, Entry Grommet |
|
- | |||||
| 35 | WP52085-28 | Thermostat, Defrost (Replaces: 52085-28) |
|
$ 107.65 | |||||
| 36 | RA43645-14 | Heat Exchanger |
|
- | |||||
| 37 | WP2205813 | Wire Tie (Replaces: 66223-1) |
|
$ 6.95 | |||||
| 37 | 65398-1 | Cover, Heat Exchanger |
|
- | |||||
| 38 | 69161-4 | Wire Harness, Main |
|
- | |||||
| 38 | 60110-2 | Cover, Wire Harness |
|
- | |||||
| 39 | WP65889-4 | Capacitor, Run (Replaces: 65889-5) |
|
Immediately | $ 55.03 | ||||
| 39 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 39 | 107099-4 | Manual, Use & Care |
|
- |
