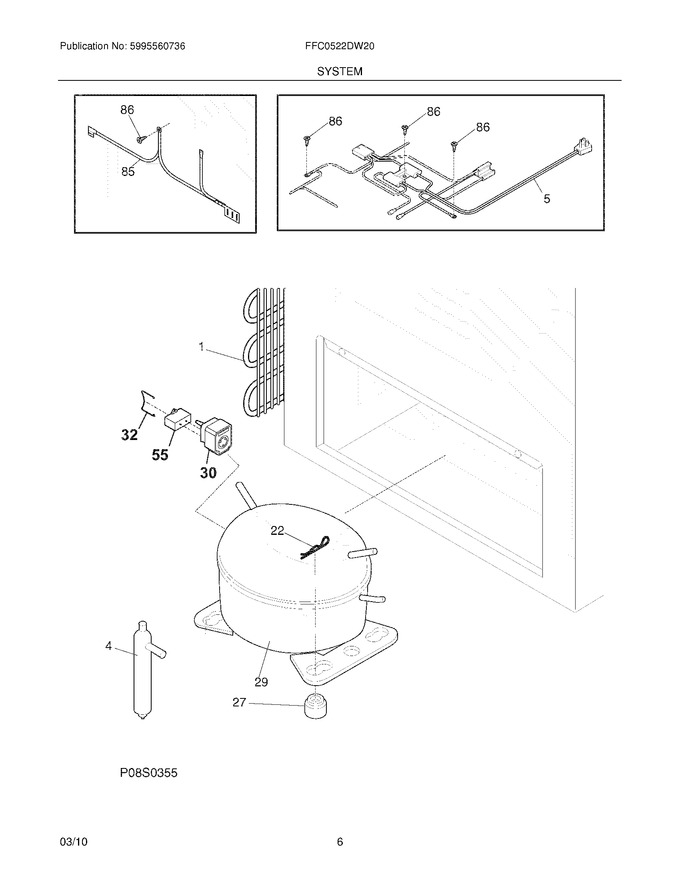

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300120779		Condenser		Appelez-nous	-
4	5303305677		Drier-filter   (Replaces: 216987501)			Immediately	$ 31.67
22	242037701		Clip-compressor Mtg   (Replaces: 216056401)				$ 2.84
27	297293301		Grommet,compressor		Appelez-nous	-
30	216954219		Controller,compressor ,5 Speed				$ 26.46
32	216954300		Clip,controller				$ 17.01
55	297286812		Capacitor,run ,12 Mf   (Replaces: 216985002)			Immediately	$ 11.78
85	216818300		Wire-ground		Appelez-nous	-
86	216707701		Screw,8-18 X 1/2		Appelez-nous	-
F29	297253401		Compressor,w/o Electricals		Appelez-nous	-
F5	297232501		Harness-main		Appelez-nous	-
NI	216707801		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
