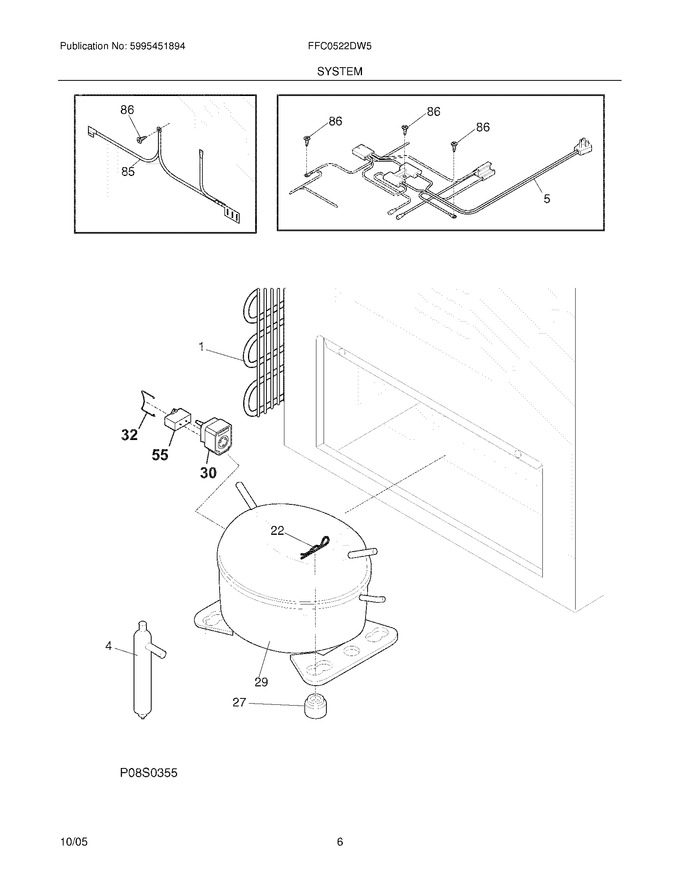

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300120779 | Condenser |
|
- | |||||
| 22 | 216056400 | Clip,compressor Mtg ,spring |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 216954208 | Controller,compressor ,5 Speed |
|
$ 74.42 | |||||
| 32 | 297030500 | Clip,controller |
|
Immediately | $ 12.05 | ||||
| 55 | 297286812 | Capacitor,run ,10mf (Replaces: 216985000) |
|
Immediately | $ 11.78 | ||||
| 85 | 216818300 | Wire-ground |
|
- | |||||
| 86 | 216707700 | Screw,8-18 X 1/2 |
|
- | |||||
| F29 | 5304443412 | Compressor,w/o Electricals (Replaces: 297004100) |
|
$ 856.23 | |||||
| F4 | 5303305677 | Drier-filter (Replaces: 216938600) |
|
Immediately | $ 31.67 | ||||
| F5 | 216952300 | Harness-main |
|
- | |||||
| NI | 216707800 | Screw,ph ,8-32 X 1/2 ,wiring Harness |
|
- |
